B84143A0050R106 | TDK (EPCOS)
EMC filter, 50 to 60 Hz, 50 A, 520/300 VAC, terminal block, B84143A0050R106
Unit Price (€ / pc.)
215.5804 € *
Available: 0 pcs.
Leadtime: 7 Weeks **

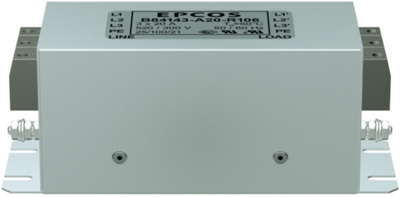

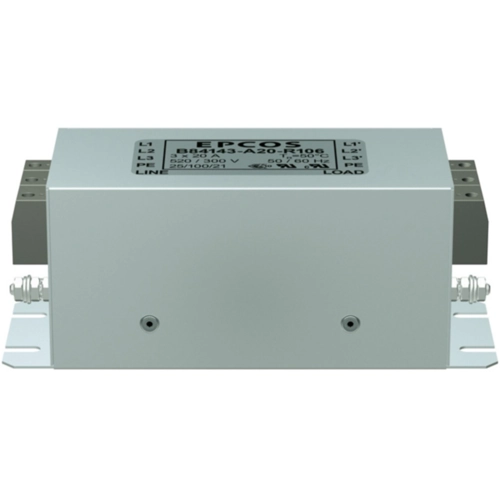

EMC filter, B84143A0050R106, EPCOS
3-line filter for converters and power electronics
Features
- High insertion loss
- Optimized leakage current
- Easy to install
- Low weight
- Compact design
- Degree of protection: IP 20
- Optimized for long motor cables and operation under full load
Applications
- Frequency converters for motor drives
- Elevators
- Conveyor system
- HVAC system (heating, ventilation and air conditioning)
- Power supplies
- Textile machines, packaging machines, machine-tools
Technical specifications
| ohmscher Widerstand | 1.1 mΩ | |
| Anschluss | Klemmleiste | |
| Anzahl der Phasen | 3 | |
| Ausführung | EMC Filter | |
| Bemessungsspannung | 520/300 VAC | |
| integrierter Schalter | No | |
| max. Frequenz | 60 Hz | |
| max. Temperatur | 100 °C | |
| min. Frequenz | 50 Hz | |
| min. Temperatur | -25 °C | |
| Mit Sicherung | No | |
| Nennstrom | 50 A |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85363010 |
| Originalverpackung | Karton mit 2 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
