B84144A0066R120 | TDK (EPCOS)
EMC filter, 50 to 60 Hz, 66 A, 300/520 VAC, print terminal, B84144A0066R120
Unit Price (€ / pc.)
343.7434 € *
Available: 0 pcs.
Leadtime: 7 Weeks **

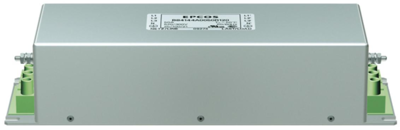

EMC filter, B84144A0066R120, EPCOS
4-line filter for converters and power electronics
Features
- Easy to install
- Space-saving design
- Optimized for long motor cables
Applications
- Frequency converters for motor drives
- Elevators
- Conveyor system
- HVAC system (heating, ventilation and air conditioning)
- Power supplies
- Industrial applications
Technical specifications
| ohmscher Widerstand | 1.1 mΩ | |
| Anschluss | Printklemme | |
| Anzahl der Phasen | 3 | |
| Ausführung | EMC Filter | |
| Bemessungsspannung | 300/520 VAC | |
| integrierter Schalter | No | |
| max. Frequenz | 60 Hz | |
| max. Temperatur | 100 °C | |
| min. Frequenz | 50 Hz | |
| min. Temperatur | -25 °C | |
| Mit Sicherung | No | |
| Nennstrom | 66 A |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85363010 |
| Originalverpackung | Karton mit 2 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
