B59607A0120A062 | TDK (EPCOS)
PTC thermistor, 55 Ω, 120 °C, ±25 %, SMD 1210, B59607A0120A062
Unit Price (€ / pc.)
1.1305 € *
Available: 1,949 pcs.
Leadtime: On Request **
Total Price:
11.31 € *
Price list
Quantity
Price per unit*
10 pcs.
1.1305 €
50 pcs.
0.9996 €
250 pcs.
0.8568 €
2000 pcs.
0.6783 €
4000 pcs.
0.6307 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD PTC thermistors, type TDK/Epcos B59..A62.
Suitable for surge current protection / switching delay applications and reflow soldering. High-speed response
Operating voltage 30 V, type B5960..A62.
Technical specifications
| ohmic resistance | 55 Ω | |
| Response temperature | 120 °C | |
| Tolerance | ±25 % | |

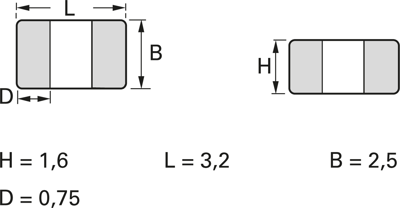

| Design | SMD 1210 | |
| Rated voltage (DC) | 30 V | |
| Rated voltage (AC) | 30 V | |
| Rated current | 70 A | |
| switching current | 400 mA | |
| Assembly | SMD | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85332100 |
| Original Packaging | Rolle mit 2.000 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
