B59622A0090A062 | TDK (EPCOS)
PTC thermistor, 220 Ω, 90 °C, ±25 %, SMD 0603, B59622A0090A062
Unit Price (€ / pc.)
1.2019 € *
Available: 3,520 pcs.
Leadtime: On Request **
Total Price:
12.02 € *
Price list
Quantity
Price per unit*
10 pcs.
1.2019 €
50 pcs.
1.0591 €
250 pcs.
0.9163 €
1000 pcs.
0.7973 €
4000 pcs.
0.6902 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD PTC thermistors, type TDK/Epcos B59..A62.
Suitable for surge current protection / switching delay applications and reflow soldering. High-speed response
Operating voltage 60 V, type B5962..A62.
Technical specifications
| ohmic resistance | 220 Ω | |
| Response temperature | 90 °C | |
| Tolerance | ±25 % | |

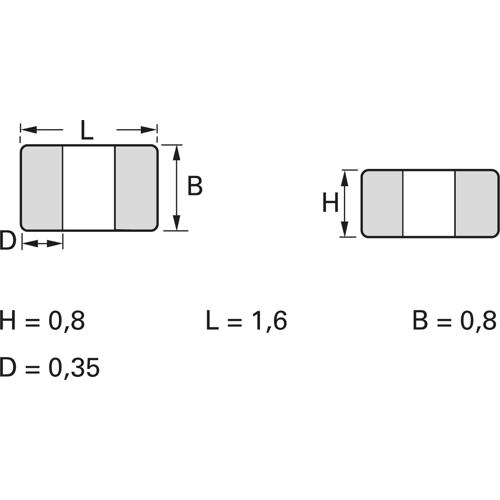

| Design | SMD 0603 | |
| Rated voltage (DC) | 60 V | |
| Rated voltage (AC) | 60 V | |
| Rated current | 22 A | |
| switching current | 220 mA | |
| Assembly | SMD | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85332100 |
| Original Packaging | Rolle mit 4.000 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
