HWS-600-24 | TDK-Lambda
AC-DC power supply, 24 VDC, 27 A, 648 W, HWS-600-24
Unit Price (€ / pc.)
451.01 € *
Available: 0 pcs.
Leadtime: 1 Week **

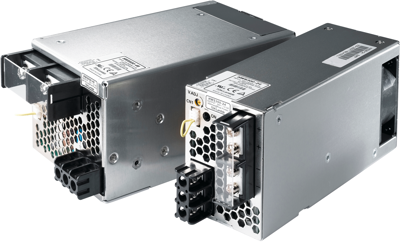

AC/DC Power Supply, HWS-600-24, TDK-Lambda
The HWS series is characterized by its reliable fan-cooled models with 300, 600, 1000 and 1500W. They provide output voltages from 3.3V to 60V. A PV input (option for 300 and 600W, standard on 1000 and 1500W units), with a programming voltage of 1 to 6Vdc, allows continuous (analog) regulation of the output voltage between 20% and 120% (20% - 110% for 48V units) of the nominal output voltage. Another advantage of the HWS series is an extended manufacturer's warranty.
Features
- Limited lifetime warranty
- High efficiency
- Wide range AC input
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 24 VDC | |
| Ausgangsstrom | 27 A | |
| Breite | 165 mm | |
| Eingangsspannungsbereich | 85-265 VAC | |
| Höhe | 82 mm | |
| Länge | 100 mm | |
| Leistung | 648 W | |
| Wirkungsgrad | 85 % |
Download
Logistics
| Ursprungsland | MY |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei, 2-Methylimidazol |
