LS-25-24 | TDK-Lambda

AC-DC power supply, 24 VDC, 1.1 A, 25 W, LS-25-24

Order No.: 70C1178
EAN: 4099891290740
MPN:
LS-25-24
Series: LS

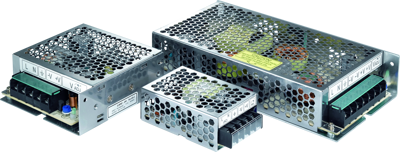

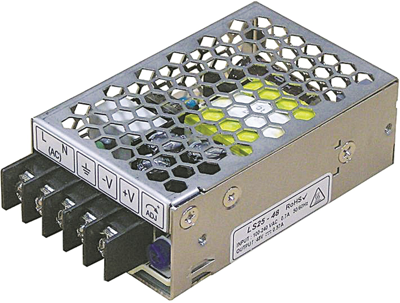

LS-25-24 TDK-Lambda Built-In Power Supplies Image 1
LS-25-24 TDK-Lambda Built-In Power Supplies Image 2
LS-25-24 TDK-Lambda Built-In Power Supplies Image 3
Image may differ
Unit Price (€ / pc.)
24.5854 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
245.85 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
24.5854 €

AC/DC Power Supply, LS-25-24, TDK-Lambda

The LS-switching power supply series has power stages from 25 to 200W and offers the user both a very advantageous purchase price and very high MTBF values of up to 900,000 hours. Equipped with a five-year warranty, the LS series has a long operating performance at ambient temperatures from -25 up to + 70 ° C. The series has a wide range input from 88 to 264 V and can withstand overvoltages of up to 300 V AC for five seconds. All common output voltages are available (3.3V to 48V).

Features

  • High MTBF
  • High efficiency
  • -25 to +70°C Operating temperature
  • Low derating above 50°C (up to 70% load at 70°C available)
  • Curve B EMC
Technical specifications
Anzahl der Ausgänge 1
Ausgangsspannungsbereich 24 VDC
Ausgangsstrom 1.1 A
Breite 28 mm
Eingangsspannungsbereich 88-264 VAC
Höhe 51 mm
Länge 79 mm
Leistung 25 W
Wirkungsgrad 84 %
Logistics
Ursprungsland CN
Zolltarifnummer 85044095
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
