RWS-100B-24 | TDK-Lambda

AC-DC power supply, 24 VDC, 4.5 A, 108 W, RWS-100B-24

Order No.: 70C1077
EAN: 4099891290221
MPN:
RWS-100B-24
Series: RWS

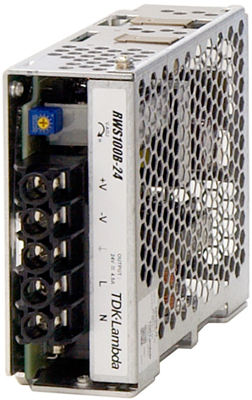

RWS-100B-24 TDK-Lambda Built-In Power Supplies Image 1
RWS-100B-24 TDK-Lambda Built-In Power Supplies Image 2
Image may differ
Unit Price (€ / pc.)
74.4107 € *
Available: 1 pcs.
Leadtime: On Request **
Total Price:
74.41 € *
Price list
Quantity
Price per unit*
1 pcs.
74.4107 €
5 pcs.
69.9482 €
15 pcs.
67.2707 €
50 pcs.
64.2838 €
150 pcs.
61.6063 €
*incl. VAT plus shipping costs
**Subject to prior sale

AC/DC Power Supply, RWS-100B-24, TDK-Lambda

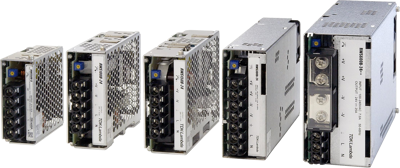

The RWS-B series (50 to 1500 W) offers solid performance at an excellent price-performance ratio! Thus these power supplies have an extremely long life time of the electrolytic capacitors (ecap-lifetime) and 7 years warranty. All RWS-B models work with an AC wide range input of 85 - 265 V and offer output voltages from 5 to 48VDC. This makes them perfect for use in industrial, measurement, communication, LED and broadcast applications. The RWS1000B/ME and RWS1500B/ME devices also have medical approval (IEC 60601-1).

Features

  • 10 years lifetime of the E-Cap
  • Global security approvals
  • Compact size
Technical specifications
Anzahl der Ausgänge 1
Ausgangsspannungsbereich 24 VDC
Ausgangsstrom 4.5 A
Breite 108 mm
Eingangsspannungsbereich 85-265 VAC
Höhe 39 mm
Länge 94 mm
Leistung 108 W
Wirkungsgrad 87.5 %
Logistics
Ursprungsland MY
Zolltarifnummer 85044095
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
