CC3-2412SF-E | TDK-Lambda

DC converter, 24 VDC, 3 W, 1 output, 12 VDC, 73 % efficiency, CC3-2412SF-E

Order No.: 70C1250
EAN: 4099891339067
MPN:
CC3-2412SF-E
Series: CC-E

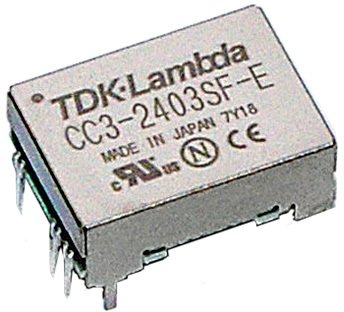

CC3-2412SF-E TDK-Lambda DC/DC Converters
Image may differ
Unit Price (€ / pc.)
16.9575 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
50.87 € *
*incl. VAT plus shipping costs
**Subject to prior sale
3 pcs.
16.9575 €

DC-DC Converter, CC3-2412SF-E, TDK-LAMBDA

The cost-effective DC-DC converter series CC-E is characterized by high efficiency, high reliability and a very slim height. The input voltage range is: at 5V: 4.5 - 9.0V, at 12V: 9-18V, at 24V: 18-36V, at 48V: 36-76VDC, the output voltage range is 3.3, 5, 12, 15, ±12 and ±15VDC. The output voltage range is adjustable within the ranges from 3.15 - 3.6, 4.75 - 6.0, 11.4 - 15 or 22.8 - 30VDC. Supported by a five-year guarantee, the converters are available with pins for push-through technology (THT) and in an SMD version.

FEATURES

  • Compact footprint with very low profile
  • Open frame (no potting)
  • Wide operation temperature -40 to 85°C
  • Output voltage trimmable
  • Through hole (THT) or SMD
  • Input-output isolation
Technical specifications
Anzahl der Ausgänge 1
Ausgangsspannungsbereich 12 VDC
Ausgangsstrom 250 mA
Bauform DIP7
Breite 16.6 mm
Eingangsspannungsbereich 24 VDC
Höhe 8.5 mm
Isolationsspannung 500 V
Länge 22.9 mm
Leistung 3 W
Wirkungsgrad 73 %
Logistics
Ursprungsland JP
Zolltarifnummer 85044095
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung 1,6,7,8,9,14,15,16,17,17,18,18-dodecachloropentacyclo[12.2.1.16,9.02,13.05,10]octadeca-7,15-dien ("Dechlorane Plus"™), Blei, 2-Methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-on
