PS1240P02CT3 | TDK
Buzzer, 4 kHz, 60 dB, 3 VDC, black, PS1240P02CT3
Unit Price (€ / pc.)
0.4403 € *
Available: 0 pcs.
Leadtime: On Request **

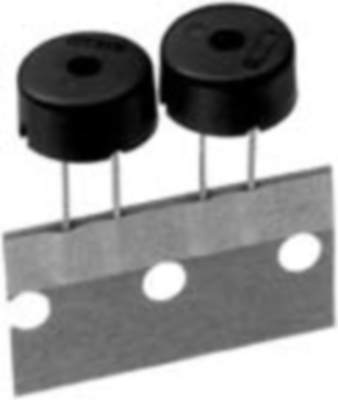

Acoustic Signal Transmitter, PS1240P02CT3, TDK
Piezoelectronic buzzer
FEATURES
- Sounding body (unimorph) that piezo bonded the diaphragm is used, and attach on circuit, and is easy design high performance efficiency piezoelectric buzzer.
- They feature extremely low power consumption in comparison to electromagnetic units.
- They can be used with automated inserters. Moisture-resistant models are also available.
- Because these buzzers are designed for external excitation, the same part can serve as both a musical tone oscillator and a buzzer.
Technical Data
- Resonant frequency: 4 kHz
- Colour: black
- Sound pressure level: 60 dB
- Installation diameter: 12.2 mm
Technical specifications
| Ausführung | Summer | |
| Einbaudurchmesser | 12.2 mm | |
| Farbe | schwarz | |
| Frequenz | 4 kHz | |
| Schalldruckpegel | 60 db | |
| Spannung | 3 VDC |
Download
Logistics
| Zolltarifnummer | 85318040 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
