1551572-5 | TE Connectivity
Spring contact for PCB connector, 1551572-5
Order No.: 37P2857
EAN: 4099891030896
MPN:
1551572-5
Unit Price (€ / pc.)
0.1845 € *
Available: 0 pcs.
Available in 5 Days: 2,249 pcs.
Leadtime: 11 Weeks **
Total Price:
0.18 € *
Price list
Quantity
Price per unit*
472 pcs.
0.1845 €
24000 pcs.
0.1737 €
*incl. VAT plus shipping costs
**Subject to prior sale

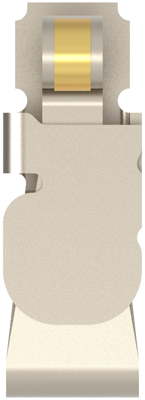

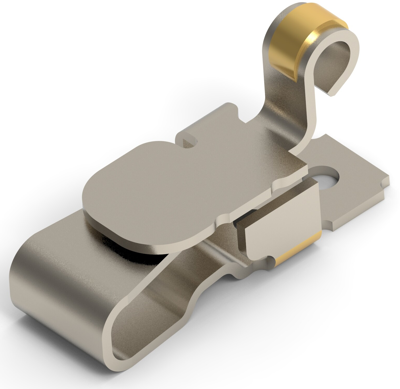

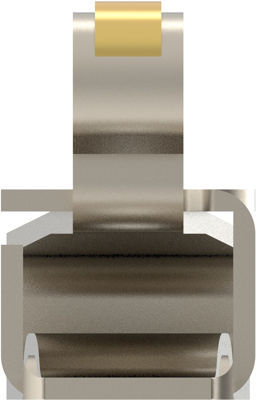

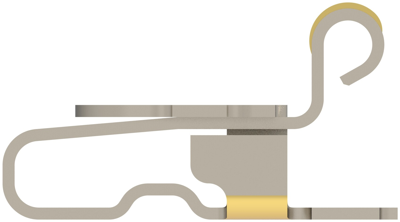

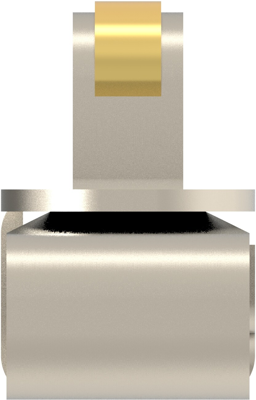

PCB spring contact, 1551572-5, TE Connectivity
Spring Finger Type: Preloaded - C-Clip, Scalable: Yes, Connector System: Board-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Side Protected: No, Number of Positions: 1, Contact Base Material: Stainless Steel, Contact Length: 3.26 mm, Contact Width: 1.15 mm, Contact Working Range (Low): 0.85 mm, Contact Working Range (High): 1.45 mm, Uncompressed Height: 1.8 mm, Operating Temperature Range: -40 - 85 °C, Circuit Application: Signal.
Technical specifications
| Suitable for | PCB connector | |
| Accessory Type | spring contact |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
