2199248-4 | TE Connectivity
Spring contact for PCB connector, 2199248-4
Order No.: 37P2863
EAN: 4099891030940
MPN:
2199248-4
Unit Price (€ / pc.)
0.1035 € *
Available: 0 pcs.
Available in 5 Days: 891,000 pcs.
Leadtime: 11 Weeks **
Total Price:
1,138.83 € *
Price list
Quantity
Price per unit*
11000 pcs.
0.1035 €
22000 pcs.
0.1012 €
*incl. VAT plus shipping costs
**Subject to prior sale

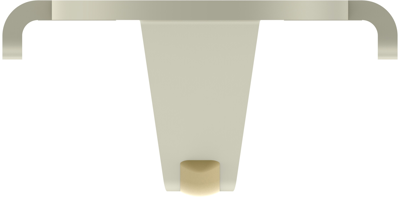

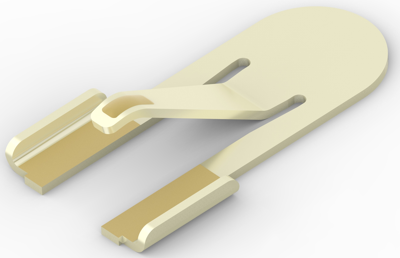

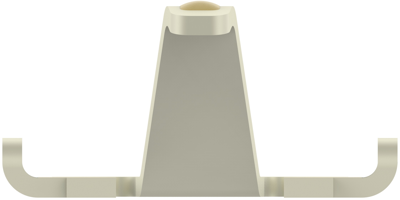

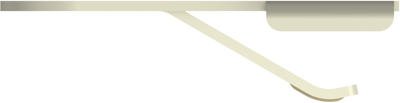

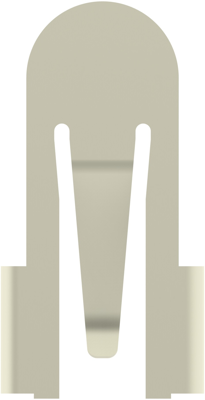

PCB spring contact, 2199248-4, TE Connectivity
Spring Finger Type: C-Clip, Scalable: Yes, Connector System: Board-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Side Protected: Yes, Number of Positions: 1, Contact Base Material: Stainless Steel, Contact Length: 3.9 mm, Contact Width: 2 mm, Contact Working Range (Low): .4 mm, Contact Working Range (High): .8 mm, Uncompressed Height: 1 mm, Operating Temperature Range: -40 - 85 °C, Circuit Application: Signal.
Technical specifications
| Suitable for | Leiterplattensteckverbinder | |
| Accessory Type | Federkontakt |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
