3-2199250-5 | TE Connectivity
Spring contact for PCB connector, 3-2199250-5
Order No.: 37P2874
EAN: 4099891031039
MPN:
3-2199250-5
Unit Price (€ / pc.)
0.2594 € *
Available: 0 pcs.
Leadtime: On Request **

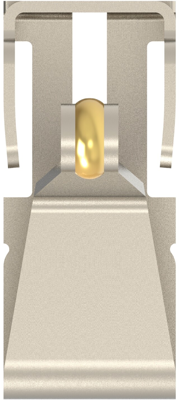

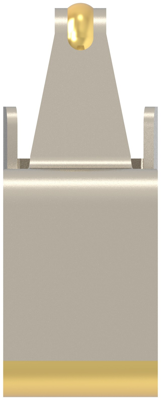

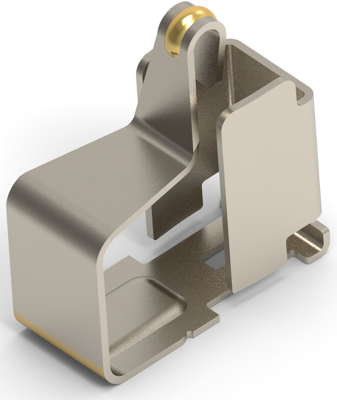

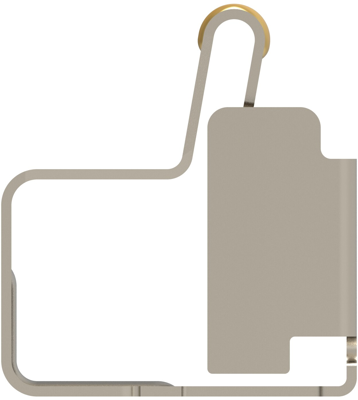

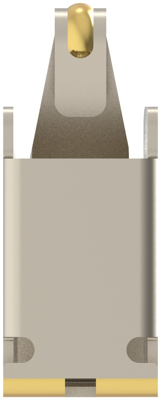

PCB spring contact, 3-2199250-5, TE Connectivity
Spring Finger Type: C-Clip, Scalable: Yes, Connector System: Board-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Side Protected: Yes, Number of Positions: 1, Contact Base Material: Copper Alloy, Contact Length: 3.45 mm, Contact Width: 1.5 mm, Contact Working Range (Low): 2.9 mm, Contact Working Range (High): 3.6 mm, Uncompressed Height: 3.8 mm, Operating Temperature Range: -40 - 85 °C, Circuit Application: Signal.
Technical specifications
| Suitable for | PCB connector | |
| Accessory Type | spring contact |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
