1-1703498-1 | TE Connectivity

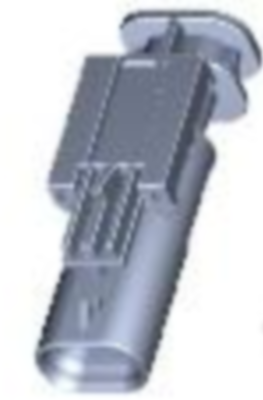

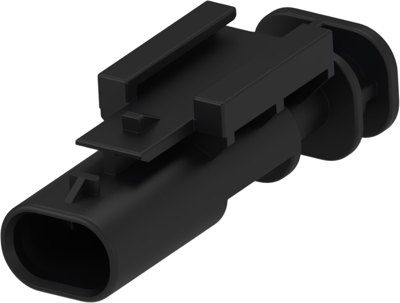

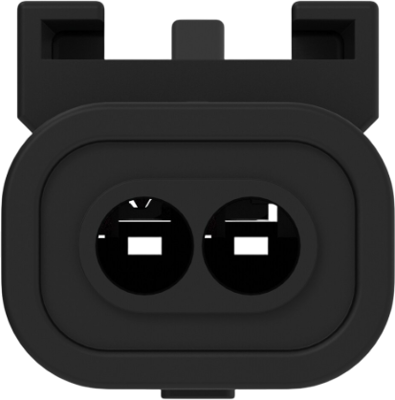

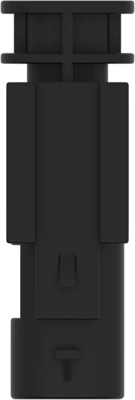

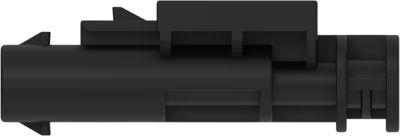

Plug, unequipped, 2 pole, straight, 1 row, black, 1-1703498-1
Unit Price (€ / pc.)
1.0472 € *
Available: 0 pcs.
Available in 5 Days: 10,230 pcs.
Leadtime: 29 Weeks **
Total Price:
1.05 € *
Price list
Quantity
Price per unit*
90 pcs.
1.0472 €
450 pcs.
0.9758 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plug housing, 1-1703498-1, TE Connectivity
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 2, Number of rows: 1, Operating voltage: 14 VDC, Nominal voltage architecture: 12 V, Body material: PBT GF, Primary product color: black, Mating tab width: 1.2 mm, Strain relief: no, Centerline (pitch): 4-Product height: 14.95 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Circuit application: signal, Packaging method: box, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 1 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | plug | |
| Rated voltage | 14 V | |
| Pin number | 2 pole | |
| Grid | 4 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
