1-1703506-1 | TE Connectivity

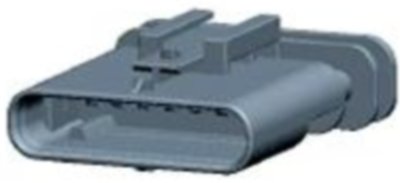

Plug, unequipped, 8 pole, straight, 1 row, black, 1-1703506-1

Order No.: 35P9692
EAN: 4099889890921
MPN:
1-1703506-1
TE Connectivity
1-1703506-1 TE Connectivity Automotive Power Connectors
Image may differ
Unit Price (€ / pc.)
3.332 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.33 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.332 €

Plug housing, 1-1703506-1, TE Connectivity

Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 8, Number of rows: 1, Nominal voltage architecture: 12 V, Operating voltage: 14 VDC, Cable exit angle: 180°, Body material: PBT GF, Primary product color: black, Mating tab width: 1.2 mm, Mounting feature: without, Centerline (pitch): 4-Height: 16.25 mm, Length: 40.2 mm, Width: 44 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Circuit application: signal, Packaging method: box, Packaging quantity: 1, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Number of rows 1
Version straight
Additional parts unequipped
Colour black
Contact type plug
Rated voltage 14 V
Pin number 8 pole
Grid 4 mm
Type of locking Yes
Logistics
Country of origin IT
Customs tariff number 85389011
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
