1-1703543-2 | TE Connectivity
Plug, unequipped, 2 pole, straight, 1 row, brown, 1-1703543-2
Order No.: 36P2959
EAN: 4099889899733
MPN:
1-1703543-2
Unit Price (€ / pc.)
1.4875 € *
Available: 0 pcs.
Available in 5 Days: 750 pcs.
Leadtime: 25 Weeks **

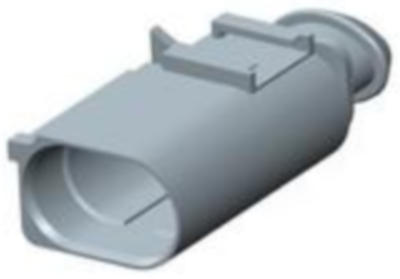

Plug housing, 1-1703543-2, TE Connectivity
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 2, Number of rows: 1, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT GF, Primary product color: brown, Mating tab width: 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 6 mm, Product height: 17.1 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, Operating temperature range: -40-130 °C, Circuit application: signal, Packaging method: box, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Number of rows | 1 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | brown | |
| Contact type | plug | |
| Rated voltage | 12 V | |
| Pin number | 2 pole | |
| Grid | 6 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85389011 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
