1-1718484-1 | TE Connectivity

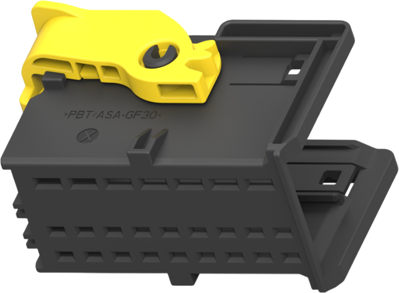

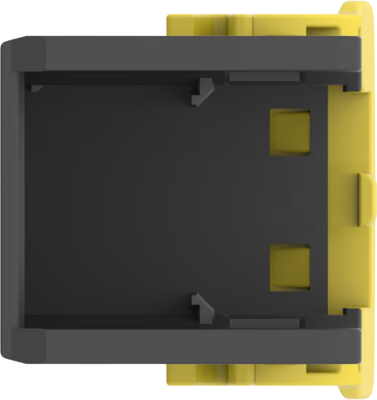

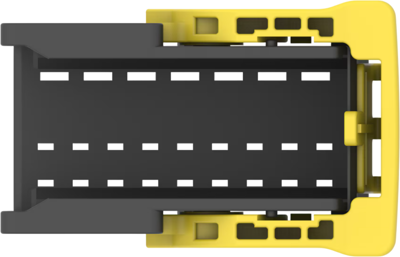

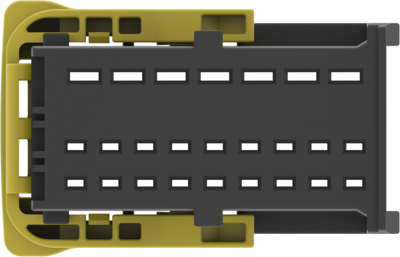

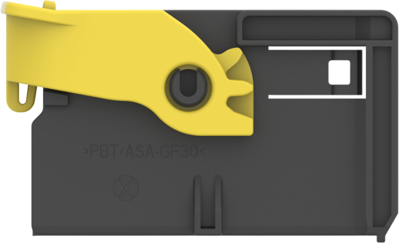

Socket, unequipped, 25 pole, straight, 3 rows, black, 1-1718484-1
Order No.: 36P4275
EAN: 4099889906103
MPN:
1-1718484-1
Unit Price (€ / pc.)
2.6894 € *
Available: 0 pcs.
Leadtime: On Request **
Socket housing, 1-1718484-1, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: yes, Primary locking feature: on the terminal, Number of positions: 25, Number of rows: 3, Operating voltage: 36 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PBT GF, Primary product color: black, Connector code: A, Mating tab width: 1.5-2.8 mm, Mating alignment type: polarized, Centerline (pitch): 4-5 mm, Row-to-row spacing: 4.2 mm, 8.1 mm, Operating temperature (max): 120 °C, Operating temperature range: -40-120 °C, UL flammability rating: UL 94HB, Packaging method: box, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Anzahl der Reihen | 3 | |
| Ausführung | gerade | |
| Bestückung | unbestückt | |
| Farbe | schwarz | |
| Kontaktart | Buchse | |
| Nennspannung | 36 V | |
| Polzahl | 25-polig | |
| Rastermaß | 4 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85389091 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
