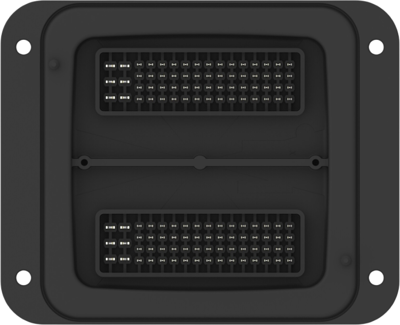

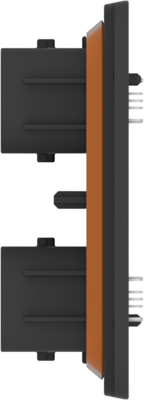

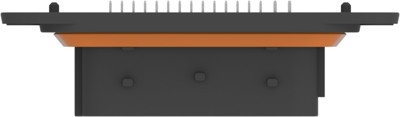

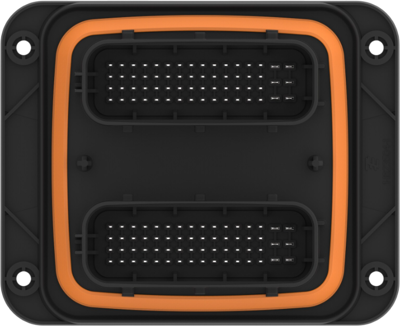

PCB mount header, 1-1823504-1, TE Connectivity
Hybrid header: yes, Sealable: yes, Connector & contact terminates to: printed circuit board, Number of signal positions: 124, Number of positions: 124, PCB mount orientation: vertical, Number of rows: 3, 4, Operating voltage: 36 VDC, Primary product color: black, Mating tab width: 1.5-2.8 mm, Mating tab thickness: 0.6-0.8 mm, Contact mating area plating material: silver (Ag), Termination method to printed circuit board: through hole-solder, PCB mount retention type: mounting hole, Centerline (pitch): 4-5 mm, Product length: 112.6 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Shielded: yes, Circuit application: power & signal, UL flammability rating: UL 94V-0, Packaging quantity: 60
