Socket, unequipped, 36 pole, straight, 4 rows, brown, 1-2141847-1
Order No.: 36P4281
EAN: 4099889906110
MPN:
1-2141847-1
Unit Price (€ / pc.)
2.6656 € *
Available: 0 pcs.
Leadtime: On Request **

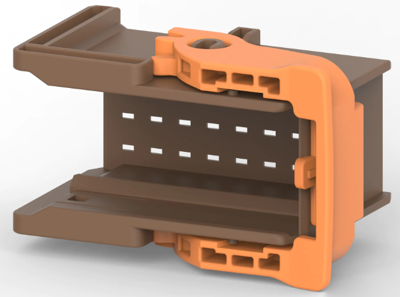

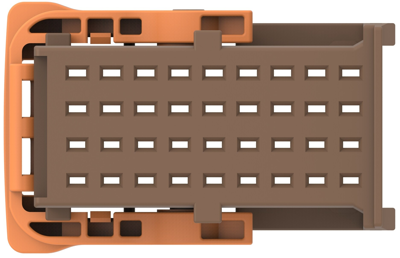

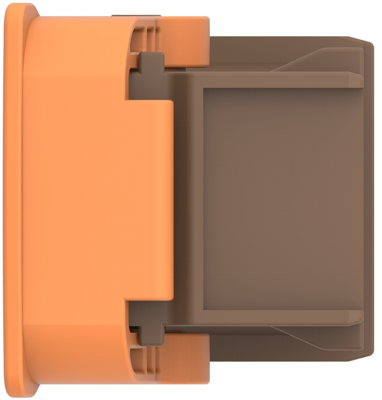

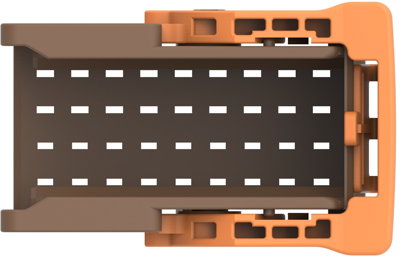

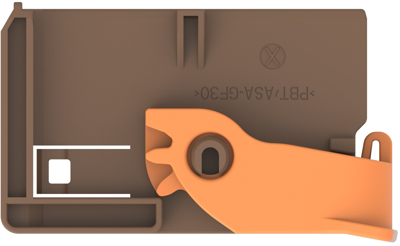

Socket housing, 1-2141847-1, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 36, Number of rows: 4, Operating voltage: 36 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PBT GF, Primary product color: brown, Connector code: A, Mating tab width: 1.5-Mating alignment type: polarized, Centerline (pitch): 4-Row-to-row spacing: 4.2 mm, Operating temperature (max): 120 °C, Operating temperature range: -40-120 °C, UL flammability rating: UL 94HB, Packaging method: box, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 4 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | brown | |
| Contact type | socket | |
| Rated voltage | 36 V | |
| Pin number | 36 pole | |
| Grid | 4 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
