1-953042-6 | TE Connectivity
Socket, unequipped, 31 pole, straight, 3 rows, black, 1-953042-6
Order No.: 36P2791
EAN: 4099889898453
MPN:
1-953042-6
Unit Price (€ / pc.)
7.2114 € *
Available: 0 pcs.
Leadtime: On Request **

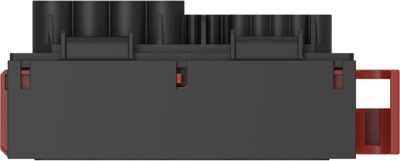

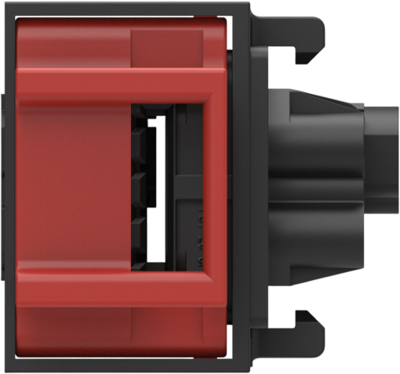

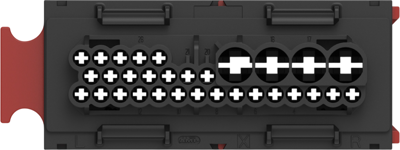

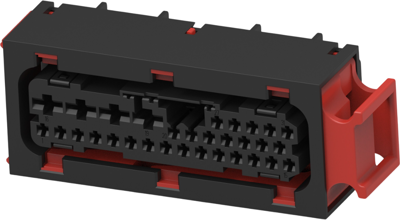

Socket housing, 1-953042-6, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: yes, Primary locking feature: on the terminal, Number of positions: 31, Number of rows: 3, Nominal voltage architecture: 12 V, Operating voltage: 14 VDC, Cable exit angle: 180°, Body material: PBT GF, Primary product color: black, Mating tab width: 1.6 mm, 4.8 mm, Mounting feature: without, Polarized, Centerline (pitch): 4-6.5 mm, 7.6 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: signal, Degree of protection: IP67, UL flammability rating: UL 94-HB, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 3 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | socket | |
| Rated voltage | 14 V | |
| Rated current | 5.25 A | |
| Pin number | 31 pole | |
| Grid | 4 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
