1-962581-2 | TE Connectivity

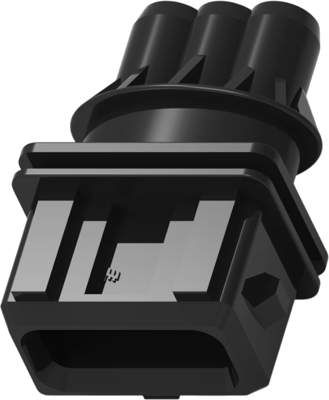

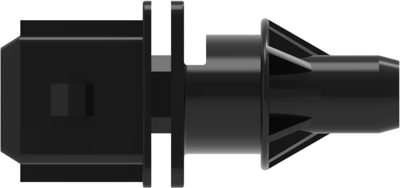

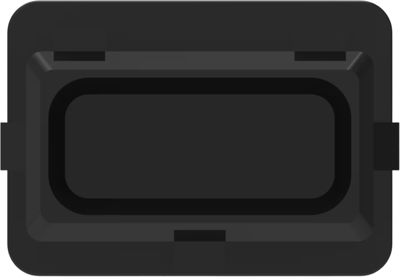

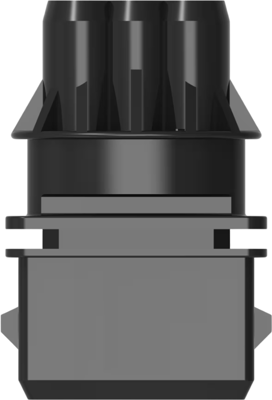

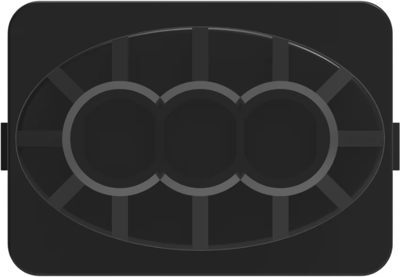

Plug, unequipped, 3 pole, straight, 1 row, black, 1-962581-2
Order No.: 36P2825
EAN: 4099889898682
MPN:
1-962581-2
Unit Price (€ / pc.)
2.5347 € *
Available: 0 pcs.
Available in 5 Days: 750 pcs.
Leadtime: 29 Weeks **
Plug housing, 1-962581-2, TE Connectivity
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 3, Number of rows: 1, Body material: PA GF, Primary product color: black, Connector code: 1, Mating tab width: 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 5 mm, Product height: 17.2 mm, Operating temperature (max): 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Packaging method: carton, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Contact type | Stecker | |
| Pin number | 3-polig | |
| Version | gerade | |
| Grid | 5 mm | |
| Connection | Crimpanschluss | |
| Number of rows | 1 | |
| contact surface | verzinnt | |
| Type of locking | Ja | |
| Rated voltage | 13 V | |
| Rated current | 28 A | |
| Additional parts | unbestückt | |
| Colour | schwarz |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
