1376111-7 | TE Connectivity

Plug, 24 pole, straight, 2 rows, natural, 1376111-7

Order No.: 35P8709
EAN: 4099889887532
MPN:
1376111-7
TE Connectivity

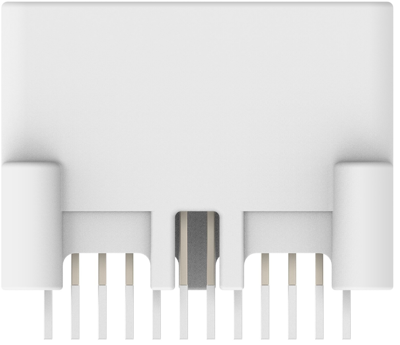

1376111-7 TE Connectivity Automotive Power Connectors Image 1

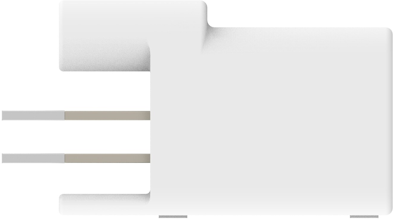

1376111-7 TE Connectivity Automotive Power Connectors Image 2

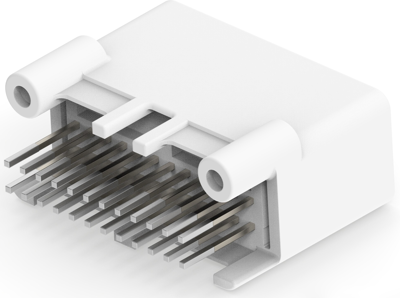

1376111-7 TE Connectivity Automotive Power Connectors Image 3

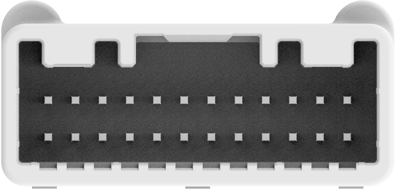

1376111-7 TE Connectivity Automotive Power Connectors Image 4

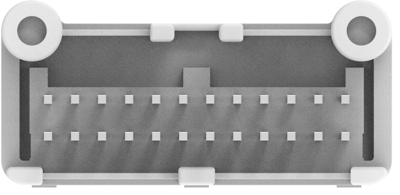

1376111-7 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
3.4034 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.40 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.4034 €

PCB mount header, 1376111-7, TE Connectivity

Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 24, Number of positions: 24, PCB mount orientation: vertical, Number of rows: 2, Operating voltage: 12 VDC, Primary product color: natural, Mating tab width: 0.64 mm, Mating tab thickness: 0.64 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention: without, Centerline (pitch): 2.2 mm, Product length: 31.8 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Shielded: no, Circuit application: signal, UL flammability rating: UL 94HB, Packaging quantity: 14

Technical specifications
Connection solder connection
Number of rows 2
Version straight
Colour natural
Contact type plug
contact surface tin-plated
Rated voltage 12 V
Pin number 24 pole
Grid 2.2 mm
Type of locking Yes
Logistics
Country of origin TH
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
