1376113-8 | TE Connectivity

Plug, 40 pole, straight, 2 rows, natural, 1376113-8

Order No.: 35P8715
EAN: 4099889887587
MPN:
1376113-8

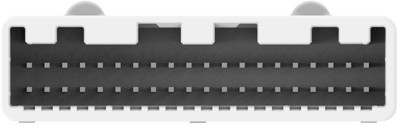

1376113-8 TE Connectivity Automotive Power Connectors Image 1

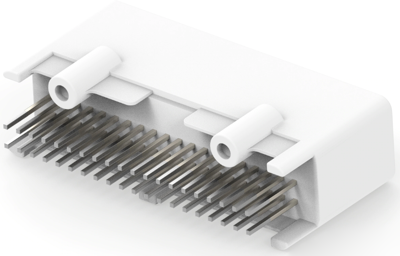

1376113-8 TE Connectivity Automotive Power Connectors Image 2

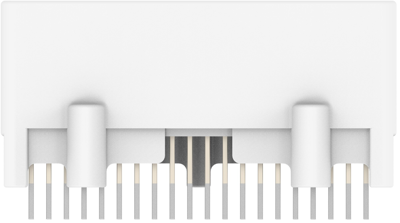

1376113-8 TE Connectivity Automotive Power Connectors Image 3

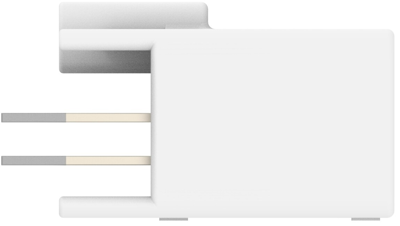

1376113-8 TE Connectivity Automotive Power Connectors Image 4

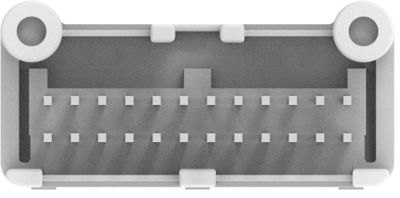

1376113-8 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
10.3649 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
10.36 € *
Price list
Quantity
Price per unit*
1 pcs.
10.3649 €
10 pcs.
9.5319 €
50 pcs.
8.5799 €
100 pcs.
7.7231 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB mount header, 1376113-8, TE Connectivity

Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 40, Number of positions: 40, PCB mount orientation: vertical, Number of rows: 2, Operating voltage: 12 VDC, Primary product color: natural, Mating tab width: 0.64 mm, Mating tab thickness: 0.64 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention: without, Centerline (pitch): 2.2 mm, Product length: 49.4 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Shielded: no, Circuit application: signal, UL flammability rating: UL 94HB, Packaging quantity: 9

Technical specifications
Connection Lötanschluss
Number of rows 2
Version gerade
Colour natur
Contact type Stecker
contact surface verzinnt
Rated voltage 12 V
Pin number 40-polig
Grid 2.2 mm
Type of locking Ja
Logistics
Country of origin TH
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
