1376766-1 | TE Connectivity

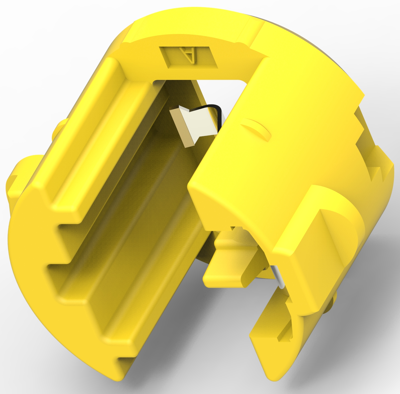

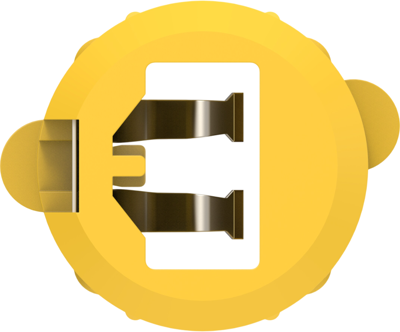

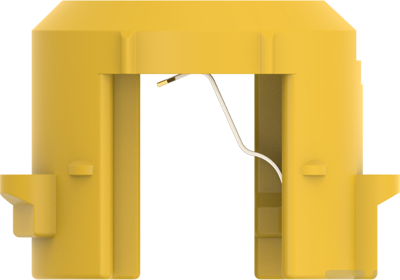

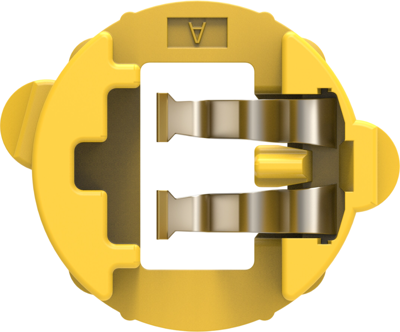

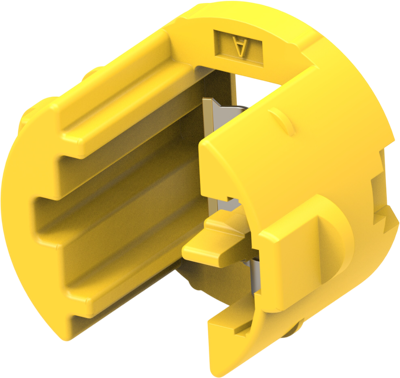

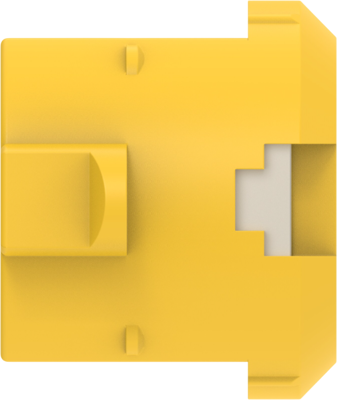

Plug, 2 pole, straight, 1 row, yellow, 1376766-1
Order No.: 35P9088
EAN: 4099889888836
MPN:
1376766-1
Unit Price (€ / pc.)
0.2618 € *
Available: 0 pcs.
Available in 5 Days: 69,581 pcs.
Leadtime: 22 Weeks **
Total Price:
0.26 € *
Price list
Quantity
Price per unit*
350 pcs.
0.2618 €
1700 pcs.
0.2487 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB mount header, 1376766-1, TE Connectivity
Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 2, PCB mount orientation: vertical, Number of rows: 1, Operating voltage: 12 VDC, Primary product color: yellow, Mating pin diameter: 1 mm, Contact mating area plating material: gold (Au), Termination method to printed circuit board: through hole-solder, PCB mount retention: without, Centerline (pitch): 3.1 mm, Product length: 11.04 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, Operating temperature range: -30-80 °C, Shielded: no, UL flammability rating: none, Packaging type: loose piece
Technical specifications
| Connection | solder connection | |
| Number of rows | 1 | |
| Version | straight | |
| Colour | yellow | |
| Contact type | plug | |
| contact surface | gold-plated | |
| Rated voltage | 12 V | |
| Pin number | 2 pole | |
| Grid | 3.1 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
