1379165-5 | TE Connectivity

Plug, 4 pole, straight, 1 row, gray, 1379165-5

Order No.: 36P1198
EAN: 4099889893977
MPN:
1379165-5

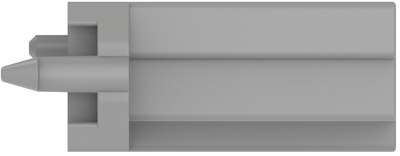

1379165-5 TE Connectivity Automotive Power Connectors Image 1

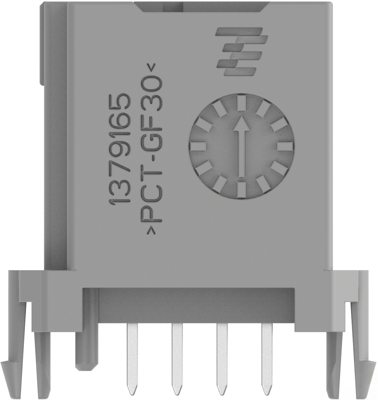

1379165-5 TE Connectivity Automotive Power Connectors Image 2

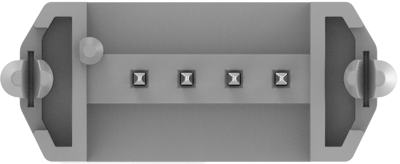

1379165-5 TE Connectivity Automotive Power Connectors Image 3

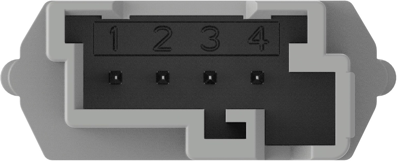

1379165-5 TE Connectivity Automotive Power Connectors Image 4

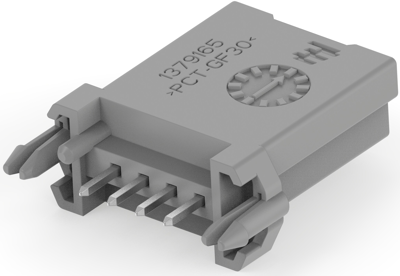

1379165-5 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
0.9758 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Total Price:
285.91 € *
*incl. VAT plus shipping costs
**Subject to prior sale
293 pcs.
0.9758 €

PCB mount header, 1379165-5, TE Connectivity

Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 4, Number of positions: 4, PCB mount orientation: vertical, Number of rows: 1, Operating voltage: 12 VDC, Primary product color: gray, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: boardlock, Centerline (pitch): 2.54 mm, Product length: 20.4 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, Shielded: no, Circuit application: signal, UL flammability rating: UL 94HB, Packaging quantity: 6720, Interface number: 208-15592

Technical specifications
Anschluss Lötanschluss
Anzahl der Reihen 1
Ausführung gerade
Farbe grau
Kontaktart Stecker
Kontaktoberfläche verzinnt
Nennspannung 12 V
Polzahl 4-polig
Rastermaß 2.54 mm
Verriegelung Ja
Logistics
Ursprungsland IN
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
