1379659-5 | TE Connectivity

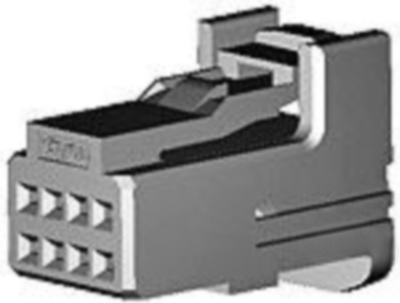

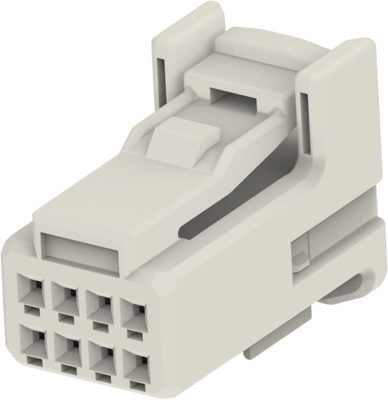

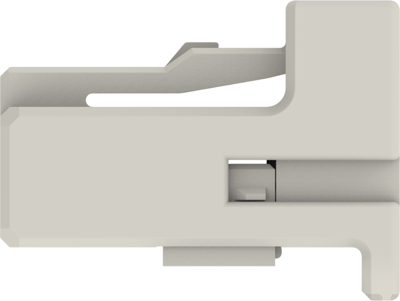

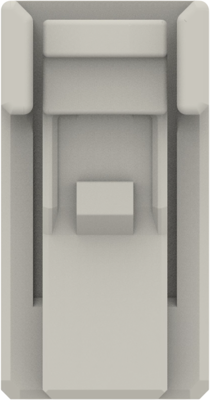

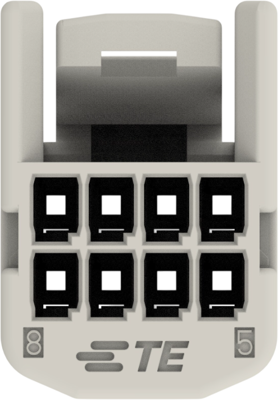

Socket, unequipped, 8 pole, straight, 2 rows, natural, 1379659-5
Order No.: 35P8687
EAN: 4099889887327
MPN:
1379659-5
Unit Price (€ / pc.)
0.4165 € *
Available: 229 pcs.
Available in 5 Days: 52,508 pcs.
Leadtime: 12 Weeks **
Total Price:
0.42 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4165 €
10 pcs.
0.3808 €
50 pcs.
0.3332 €
100 pcs.
0.3094 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket housing, 1379659-5, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 8, Number of rows: 2, Operating voltage: 14 VDC, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: natural, Mating tab width: 0.64 mm, Mating alignment type: polarized, Centerline (pitch): 2.2 mm, Row-to-row spacing: 3 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 2 | |
| Ausführung | gerade | |
| Bestückung | unbestückt | |
| Farbe | natur | |
| Kontaktart | Buchse | |
| Nennspannung | 14 V | |
| Polzahl | 8-polig | |
| Rastermaß | 2.2 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | IN |
| Zolltarifnummer | 85472000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
