1379665-5 | TE Connectivity
Socket, unequipped, 16 pole, straight, 2 rows, natural, 1379665-5
Order No.: 35P8671
EAN: 4099889887167
MPN:
1379665-5
Unit Price (€ / pc.)
1.0115 € *
Available: 0 pcs.
Leadtime: On Request **

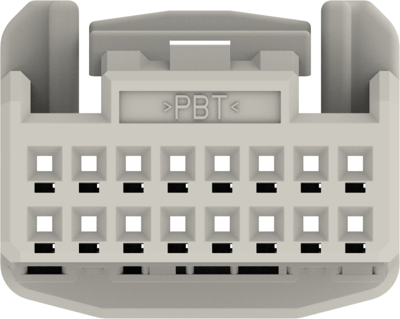

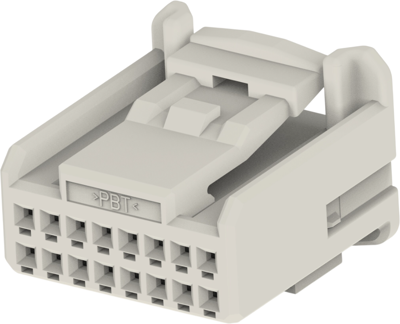

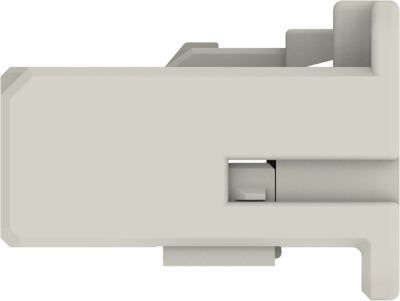

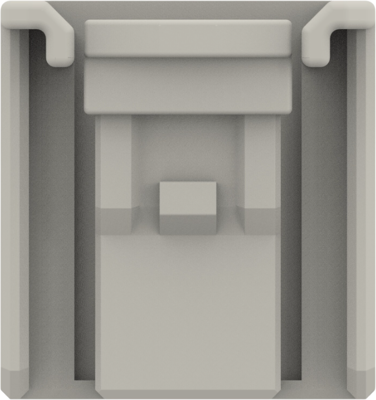

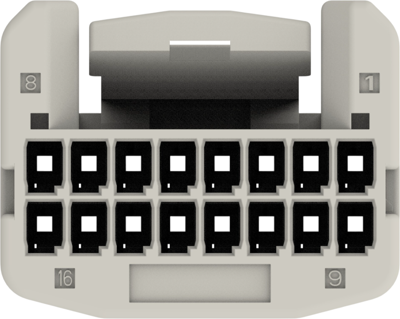

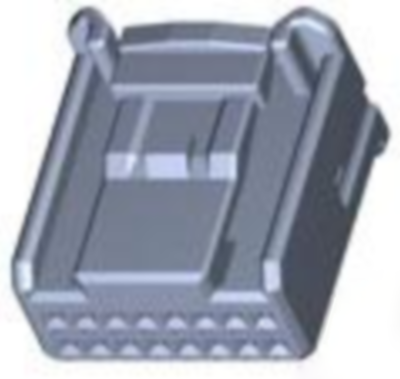

Socket housing, 1379665-5, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 16, Number of rows: 2, Operating voltage: 14 VDC, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: natural, Mating tab width: 0.64 mm, Mating alignment type: polarized, Centerline (pitch): 2.2 mm, Row-to-row spacing: 3 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: box, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Number of rows | 2 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | natural | |
| Contact type | socket | |
| Rated voltage | 14 V | |
| Pin number | 16 pole | |
| Grid | 2.2 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
