1379700-1 | TE Connectivity

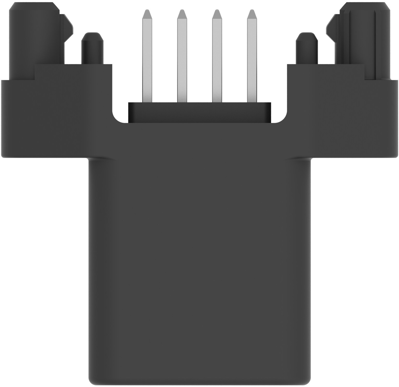

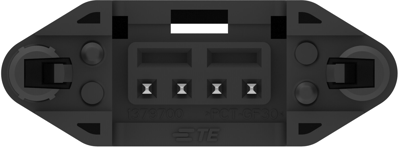

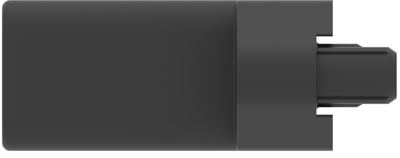

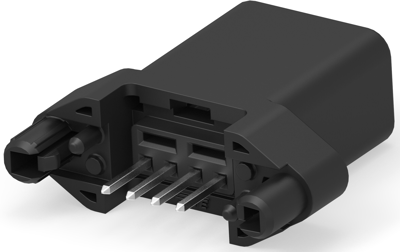

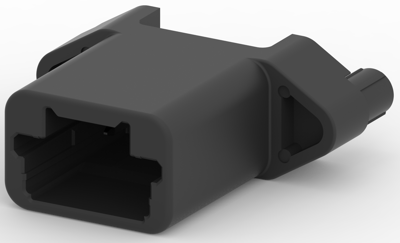

Plug, 4 pole, straight, 1 row, black, 1379700-1
Order No.: 35P8739
EAN: 4099889887792
MPN:
1379700-1
Unit Price (€ / pc.)
1.2733 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.27 € *
Price list
Quantity
Price per unit*
720 pcs.
1.2733 €
1440 pcs.
1.2376 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB mount header, 1379700-1, TE Connectivity
Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 4, Number of positions: 4, PCB mount orientation: vertical, Number of rows: 1, Operating voltage: 13.5 VDC, Primary product color: black, Mating tab width: 0.64 mm, Mating tab thickness: 0.64 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: boardlock, Centerline (pitch): 2.2 mm, Product length: 25 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Shielded: no, Circuit application: signal, UL flammability rating: UL 94HB, Packaging quantity: 1440
Technical specifications
| Connection | solder connection | |
| Number of rows | 1 | |
| Version | straight | |
| Colour | black | |
| Contact type | plug | |
| contact surface | tin-plated | |
| Rated voltage | 13.5 V | |
| Pin number | 4 pole | |
| Grid | 2.2 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
