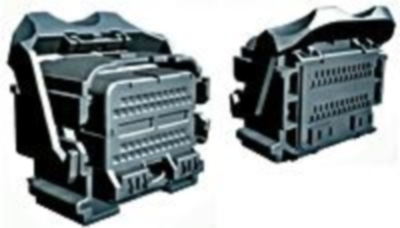

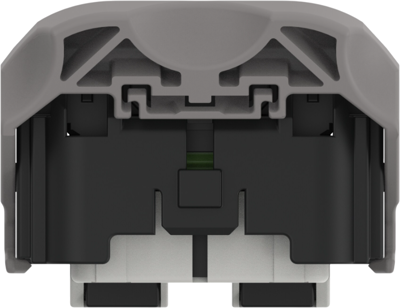

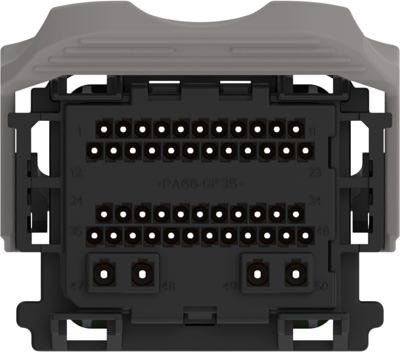

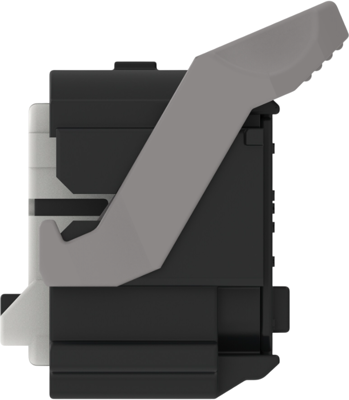

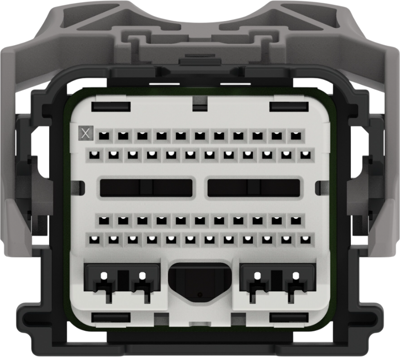

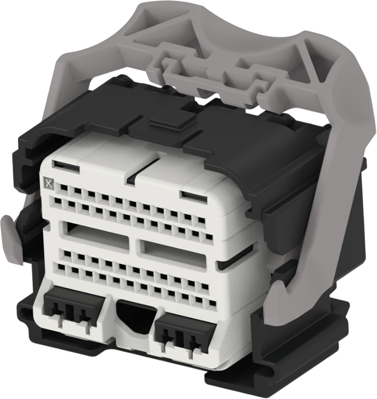

Socket housing, 1438129-3, TE Connectivity
Row-to-row spacing: 5.15 mm, 6.85 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: yes, Hybrid connector: yes, Number of positions: 50, Number of rows: 1, 4, Cable exit angle: 180°, Body material: PA GF, Primary product color: black, Mating tab width: 0.64 mm, 1.5 mm, Mounting feature: without, Polarized, Centerline (pitch): 2.54 mm, 5.08 mm, Height: 46.5 mm, Length: 40.8 mm, Width: 52.8 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Circuit application: signal, Degree of protection: IP67, Packaging method: package, Packaging quantity: 40, Serviceable: yes, Connector position assurance capable: no
