144172-2 | TE Connectivity

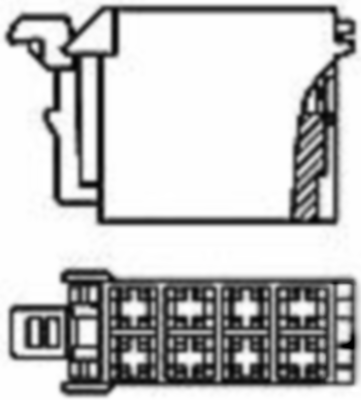

Socket, unequipped, 8 pole, straight, 2 rows, black, 144172-2
Order No.: 36P3152
EAN: 4099889901368
MPN:
144172-2
Unit Price (€ / pc.)
2.0230 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.02 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0230 €
10 pcs.
1.8326 €
50 pcs.
1.6660 €
100 pcs.
1.4875 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket housing, 144172-2, TE Connectivity
Row-to-row spacing: 4.6 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Number of positions: 8, Number of rows: 2, Cable exit angle: 180°, Body material: PA GF, Primary product color: black, Mating tab width: 2.8 mm, Mounting feature: without, Polarized, Centerline (pitch): 6 mm, Height: 24 mm, Length: 36.1 mm, Width: 11 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, -40-85 °C, Circuit application: signal, UL flammability rating: UL 94V-2, Packaging method: box, Packaging quantity: 100, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 2 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | socket | |
| Rated current | 6 A | |
| Pin number | 8 pole | |
| Grid | 6 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
