1473416-1 | TE Connectivity

Socket, unequipped, 26 pole, straight, 4 rows, black, 1473416-1

Order No.: 36P4328
EAN: 4099889906301
MPN:
1473416-1
Series: SUPERSEAL 1.0
TE Connectivity

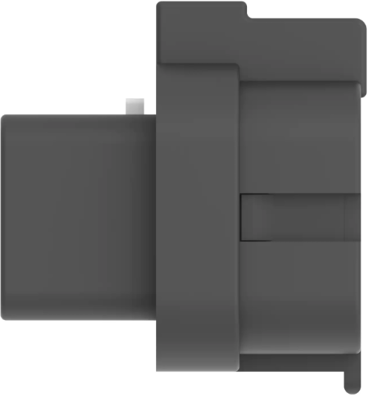

1473416-1 TE Connectivity Automotive Power Connectors Image 1

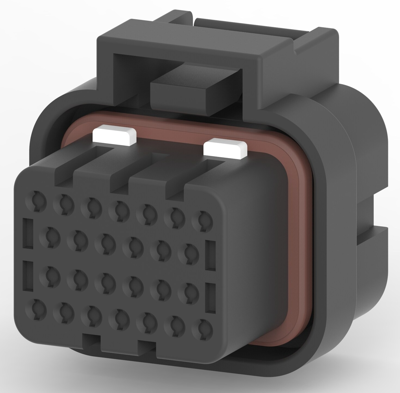

1473416-1 TE Connectivity Automotive Power Connectors Image 2

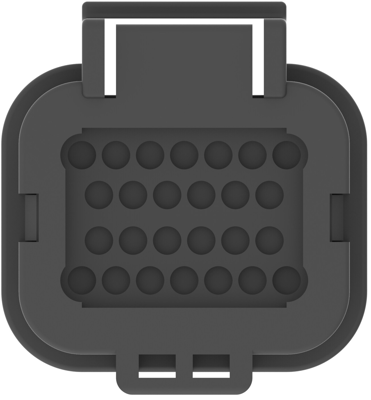

1473416-1 TE Connectivity Automotive Power Connectors Image 3

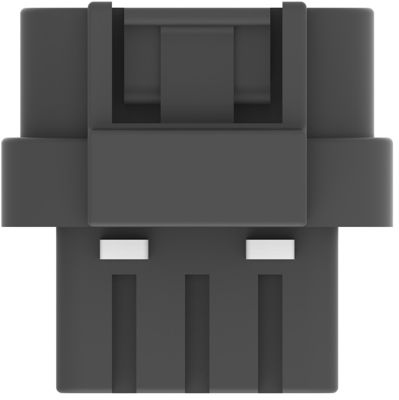

1473416-1 TE Connectivity Automotive Power Connectors Image 4

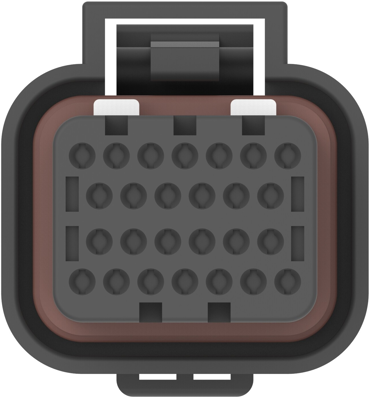

1473416-1 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
17.6001 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
17.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
17.6001 €

Socket housing, 1473416-1, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 26, Number of rows: 4, Operating voltage: 250 VAC, Nominal voltage architecture: 12 V, 24 V, 42 V, 48 V, 80 V, 90 V, 125 V, 240 V, Body material: PBT GF, Primary product color: black, Mating pin diameter: 1 mm, Mating alignment type: polarized, Centerline (pitch): 3 mm, Row-to-row spacing: 4.24 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, UL flammability rating: UL 94V-2, Packaging method: tube, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Connection crimp connection
Number of rows 4
Version straight
Additional parts unequipped
Colour black
Contact type socket
Rated voltage 250 V
Pin number 26 pole
Grid 3 mm
Type of locking Yes
Logistics
Country of origin TH
Customs tariff number 85472000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
