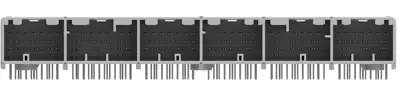

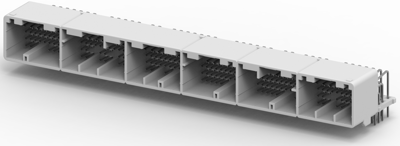

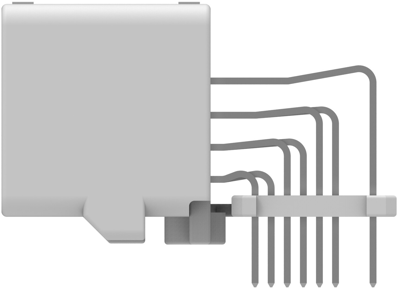

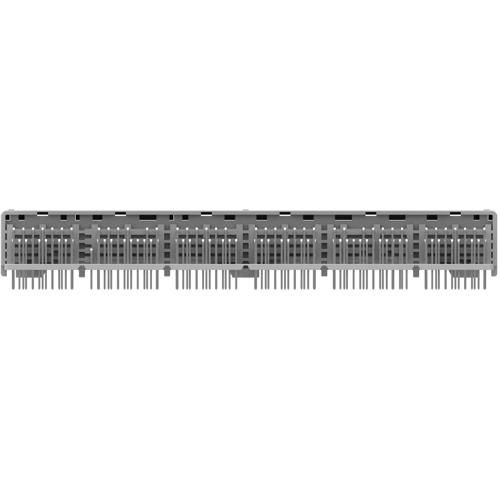

PCB mount header, 1473649-7, TE Connectivity
Hybrid header: yes, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 160, Number of positions: 200, PCB mount orientation: horizontal, Number of rows: 3, Operating voltage: 12 VDC, Primary product color: natural, Mating tab width: 0.64 mm, 1 mm, Mating tab thickness: 0.64 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: mounting hole, Centerline (pitch): 2.2 mm, 3.2 mm, Product length: 164.9 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Shielded: no, Circuit application: power & signal, Packaging quantity: 3, Interface number: 1123325/26/27/08/29
