1544662-1 | TE Connectivity
Socket, unequipped, 2 pole, straight, 1 row, black, 1544662-1
Order No.: 36P1850
EAN: 4099889896916
MPN:
1544662-1
Unit Price (€ / pc.)
1.5113 € *
Available: 0 pcs.
Leadtime: On Request **

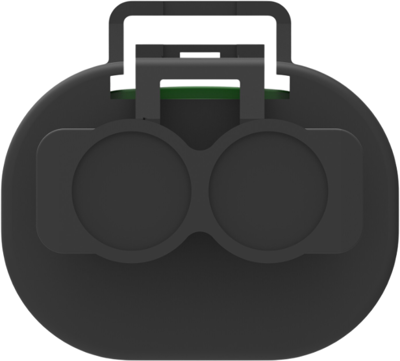

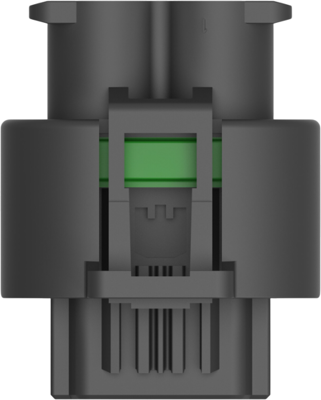

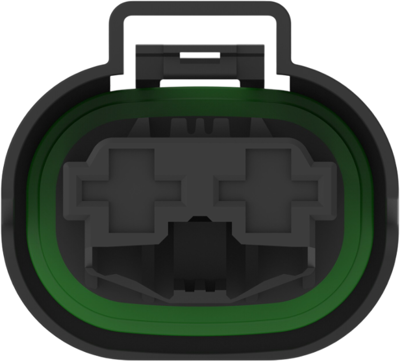

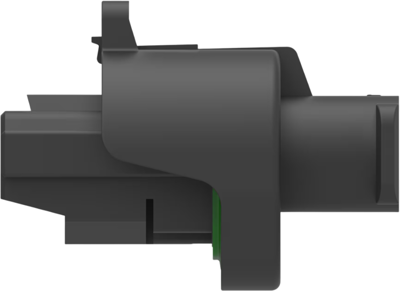

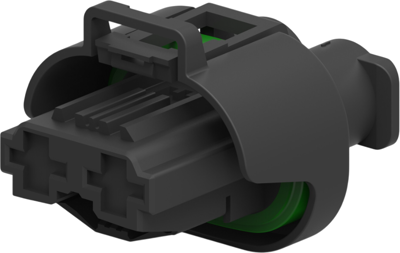

Socket housing, 1544662-1, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 2, Number of rows: 1, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: black, Mating tab width: 8 mm, Mating alignment type: polarized, Product height: 31.6 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: power, UL flammability rating: UL 94HB, Packaging method: box, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Number of rows | 1 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | socket | |
| Rated voltage | 16 V | |
| Pin number | 2 pole | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
