154979-9 | TE Connectivity
Plug, unequipped, 10 pole, straight, 2 rows, black, 154979-9
Order No.: 36P1964
EAN: 4099889897135
MPN:
154979-9
Unit Price (€ / pc.)
3.2844 € *
Available: 0 pcs.
Available in 5 Days: 59 pcs.
Leadtime: 13 Weeks **

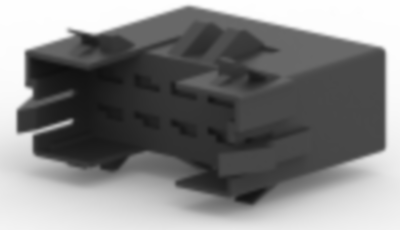

Plug housing, 154979-9, TE Connectivity
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Blank cavity position: 0, Number of positions: 10, Number of rows: 2, Body material: PA, Primary product color: black, Strain relief: no, Centerline (pitch): 7.62 mm, Row-to-row spacing: 5.13 mm, UL flammability rating: UL 94HB, Packaging method: box, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Number of rows | 2 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | plug | |
| Rated voltage | 14 V | |
| Pin number | 10 pole | |
| Grid | 7.62 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
