1563144-1 | TE Connectivity

Plug, 3 pole, angled, 1 row, black, 1563144-1

Order No.: 36P1189
EAN: 4099889893908
MPN:
1563144-1
TE Connectivity

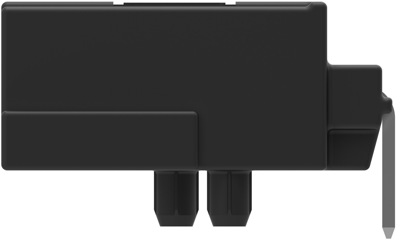

1563144-1 TE Connectivity Automotive Power Connectors Image 1

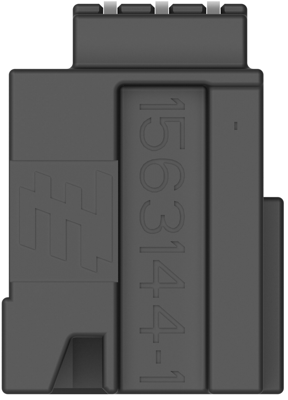

1563144-1 TE Connectivity Automotive Power Connectors Image 2

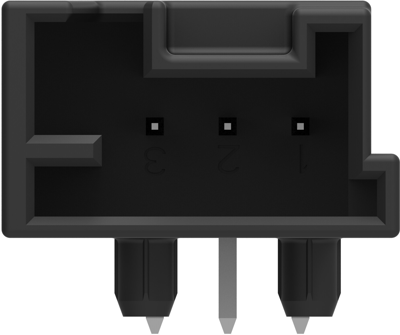

1563144-1 TE Connectivity Automotive Power Connectors Image 3

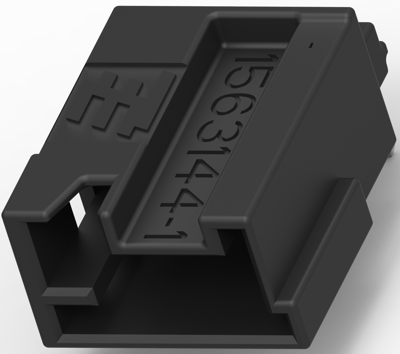

1563144-1 TE Connectivity Automotive Power Connectors Image 4

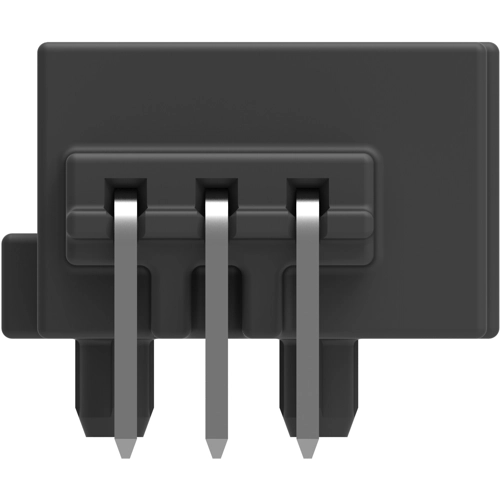

1563144-1 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
2.5466 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.55 € *
*incl. VAT plus shipping costs
**Subject to prior sale
303 pcs.
2.5466 €

PCB mount header, 1563144-1, TE Connectivity

Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 3, Number of positions: 3, PCB mount orientation: horizontal, Number of rows: 1, Primary product color: black, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: boardlock, Centerline (pitch): 2.54 mm, Product length: 13.8 mm, Shielded: no, Circuit application: signal, UL flammability rating: UL 94HB, Packaging type: tray, Interface number: 953697-1

Technical specifications
Connection solder connection
Number of rows 1
Version angled
Colour black
Contact type plug
contact surface tin-plated
Pin number 3 pole
Grid 2.54 mm
Type of locking No
Logistics
Country of origin US
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
