1563307-2 | TE Connectivity
Socket, unequipped, 24 pole, straight, 1 row, black, 1563307-2
Order No.: 35P9480
EAN: 4099889889925
MPN:
1563307-2
Unit Price (€ / pc.)
4.8314 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.83 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8314 €
10 pcs.
4.4030 €
50 pcs.
3.9627 €
100 pcs.
3.5581 €
*incl. VAT plus shipping costs
**Subject to prior sale

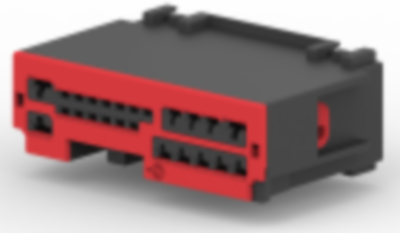

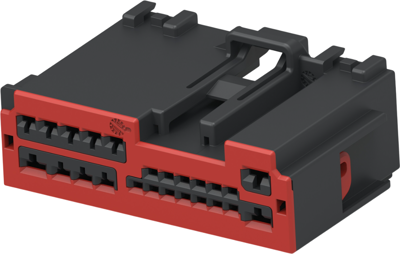

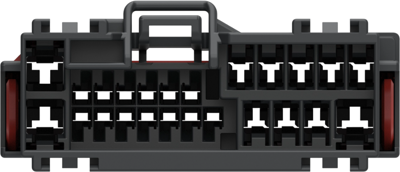

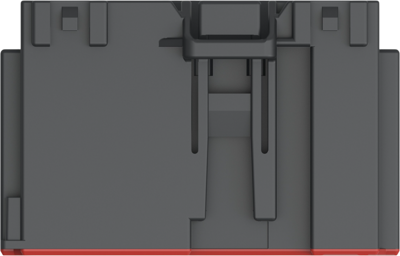

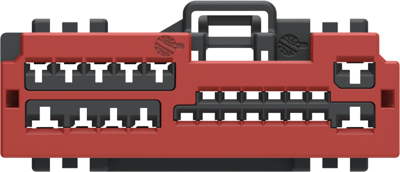

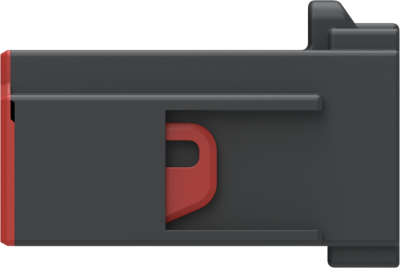

Socket housing, 1563307-2, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: yes, Primary locking feature: integrated in housing, Number of positions: 24, Body material: PA GF, Primary product color: black, Mating tab width: 0.64 mm, 1.5 mm, 2.8 mm, Mating alignment type: polarized, Product height: 19.9 mm, Circuit application: signal, Packaging method: box, Connector position assurance capable: no
Technical specifications
| Number of rows | 1 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | socket | |
| Rated voltage | 14 V | |
| Pin number | 24 pole | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
