1674558-1 | TE Connectivity

Socket, unequipped, 35 pole, straight, 4 rows, natural, 1674558-1

Order No.: 35P8605
EAN: 4099889886580
MPN:
1674558-1
TE Connectivity
1674558-1 TE Connectivity Automotive Power Connectors

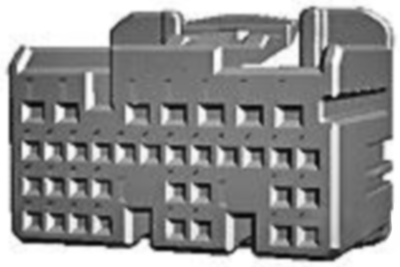

Image may differ
Unit Price (€ / pc.)
2.0468 € *
Available: 0 pcs.
Available in 5 Days: 346 pcs.
Leadtime: 25 Weeks **
Total Price:
2.05 € *
Price list
Quantity
Price per unit*
45 pcs.
2.0468 €
300 pcs.
1.6541 €
*incl. VAT plus shipping costs
**Subject to prior sale

Socket housing, 1674558-1, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: yes, Primary locking feature: integrated in housing, Number of positions: 35, Number of rows: 2, 3, 4, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: natural, Mating tab width: 0.64 mm, 1 mm, Mating alignment type: polarized, Centerline (pitch): 2.2 mm, 3.2 mm, Row-to-row spacing: 3.65 mm, 4 mm, 5.36 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Connection crimp connection
Number of rows 4
Version straight
Additional parts unequipped
Colour natural
Contact type socket
Rated voltage 12 V
Pin number 35 pole
Grid 2.2 mm
Type of locking Yes
Logistics
Country of origin CN
Customs tariff number 85472000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
