1703826-1 | TE Connectivity
Plug, unequipped, 2 pole, straight, 1 row, red, 1703826-1
Order No.: 36P2719
EAN: 4099889898101
MPN:
1703826-1
Unit Price (€ / pc.)
1.7255 € *
Available: 0 pcs.
Leadtime: On Request **

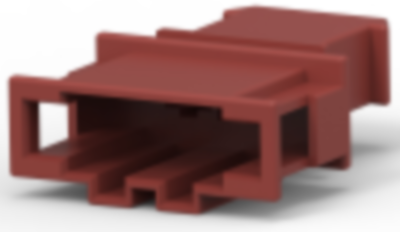

Plug housing, 1703826-1, TE Connectivity
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 2, Number of rows: 1, Operating voltage: 12 VAC, Nominal voltage architecture: 12 V, Body material: PA, Primary product color: red, Connector code: Neutral, Mating alignment type: polarized, Centerline (pitch): 7.5 mm, Product height: 36.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, Agency/standard: LV214, Packaging method: box, Connector position assurance capable: no
Technical specifications
| Number of rows | 1 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | red | |
| Contact type | plug | |
| Rated voltage | 12 V | |
| Pin number | 2 pole | |
| Grid | 7.5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
