1717394-2 | TE Connectivity

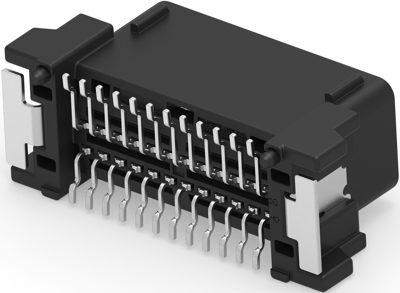

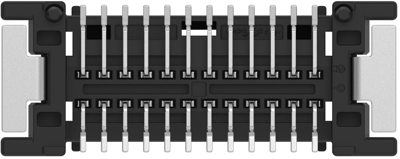

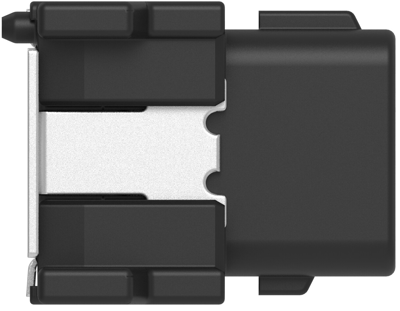

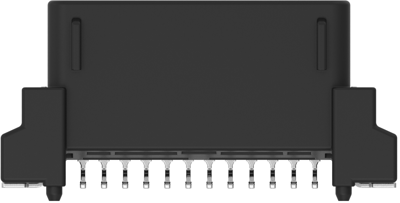

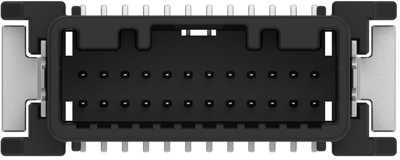

Plug, 24 pole, straight, 2 rows, black, 1717394-2
Order No.: 35P8690
EAN: 4099889887358
MPN:
1717394-2
Unit Price (€ / pc.)
3.7842 € *
Available: 0 pcs.
Available in 5 Days: 156 pcs.
Leadtime: 24 Weeks **
Total Price:
3.78 € *
Price list
Quantity
Price per unit*
26 pcs.
3.7842 €
234 pcs.
3.2011 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB mount header, 1717394-2, TE Connectivity
Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 24, Number of positions: 24, PCB mount orientation: vertical, Number of rows: 2, Operating voltage: 12 VDC, Primary product color: black, Mating tab width: 0.64 mm, Mating tab thickness: 0.64 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: Surface Mount, PCB mount retention: without, Centerline (pitch): 2.2 mm, Product length: 16.2 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Shielded: no, Circuit application: signal, UL flammability rating: UL 94V-0, Packaging quantity: 13
Technical specifications
| Connection | solder connection | |
| Number of rows | 2 | |
| Version | straight | |
| Colour | black | |
| Contact type | plug | |
| contact surface | tin-plated | |
| Rated voltage | 12 V | |
| Pin number | 24 pole | |
| Grid | 2.2 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
