1717396-2 | TE Connectivity

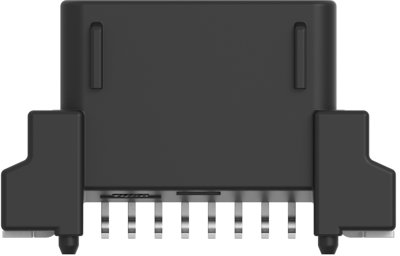

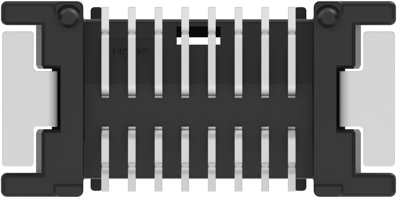

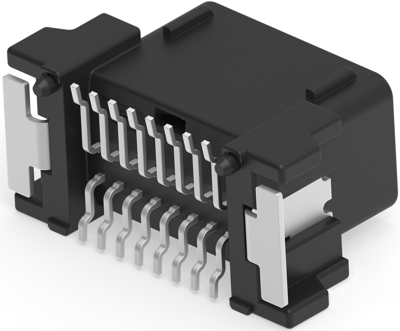

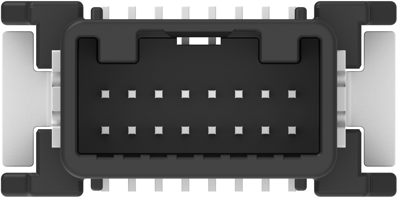

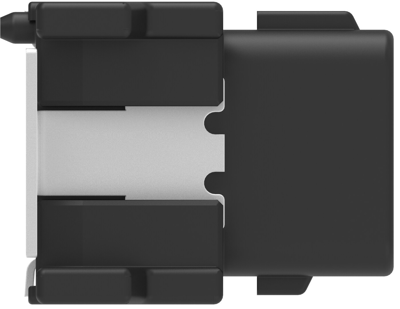

Plug, 16 pole, straight, 2 rows, black, 1717396-2
Order No.: 35P8689
EAN: 4099889887341
MPN:
1717396-2
Unit Price (€ / pc.)
4.1888 € *
Available: 0 pcs.
Available in 5 Days: 5,152 pcs.
Leadtime: 24 Weeks **
Total Price:
4.19 € *
Price list
Quantity
Price per unit*
32 pcs.
4.1888 €
160 pcs.
3.9389 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB mount header, 1717396-2, TE Connectivity
Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 16, Number of positions: 16, PCB mount orientation: vertical, Number of rows: 2, Operating voltage: 12 VDC, Primary product color: black, Mating tab width: 0.64 mm, Mating tab thickness: 0.64 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: Surface Mount, PCB mount retention: without, Centerline (pitch): 2.2 mm, Product length: 16.2 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Shielded: no, Circuit application: signal, UL flammability rating: UL 94V-0, Packaging quantity: 16
Technical specifications
| Connection | solder connection | |
| Number of rows | 2 | |
| Version | straight | |
| Colour | black | |
| Contact type | plug | |
| contact surface | tin-plated | |
| Rated voltage | 12 V | |
| Pin number | 16 pole | |
| Grid | 2.2 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
