1719040-1 | TE Connectivity

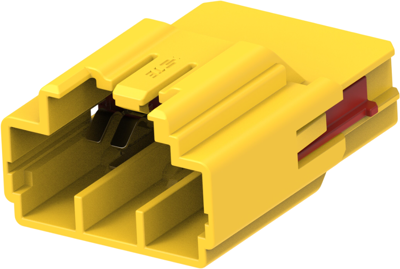

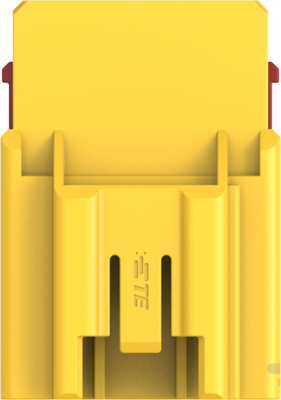

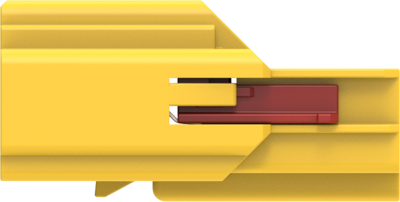

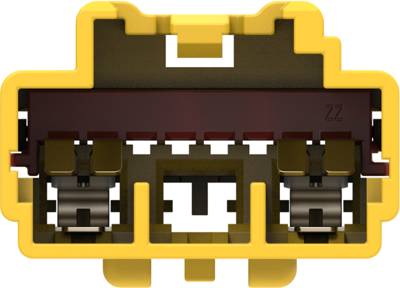

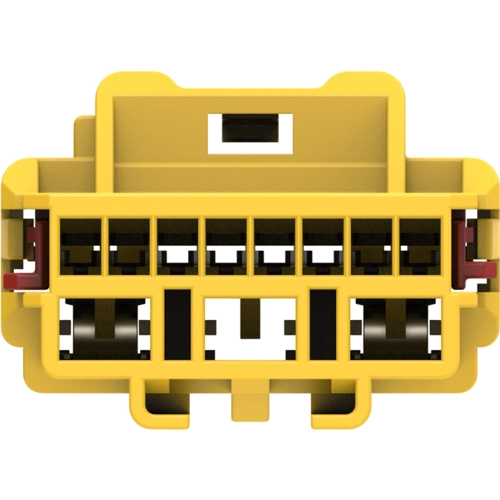

Plug, unequipped, 8 pole, straight, 1 row, yellow, 1719040-1
Order No.: 35P9485
EAN: 4099889889963
MPN:
1719040-1
Unit Price (€ / pc.)
3.9984 € *
Available: 0 pcs.
Leadtime: On Request **
Plug housing, 1719040-1, TE Connectivity
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 8, Number of rows: 1, Operating voltage: 14 VDC, Nominal voltage architecture: 12 V, Body material: PA GF, Primary product color: yellow, Mating tab width: 0.64 mm, Strain relief: no, Centerline (pitch): 2.54 mm, Product height: 18.8 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, Circuit application: signal, Packaging method: box, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Number of rows | 1 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | yellow | |
| Contact type | plug | |
| Rated voltage | 14 V | |
| Pin number | 8 pole | |
| Grid | 2.54 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
