174975-1 | TE Connectivity

Plug, 16 pole, straight, 2 rows, black, 174975-1

Order No.: 36P1420
EAN: 4099889894691
MPN:
174975-1
174975-1 TE Connectivity Automotive Power Connectors Image 1

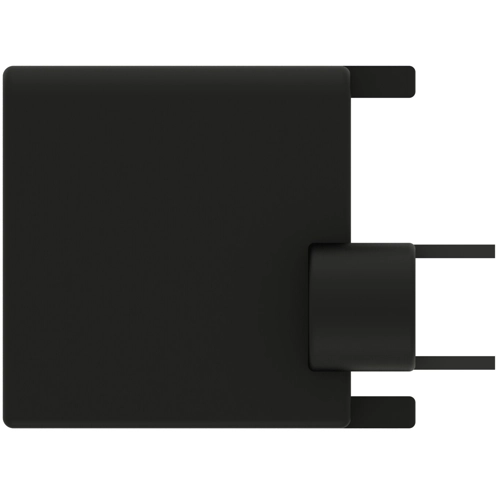

174975-1 TE Connectivity Automotive Power Connectors Image 2

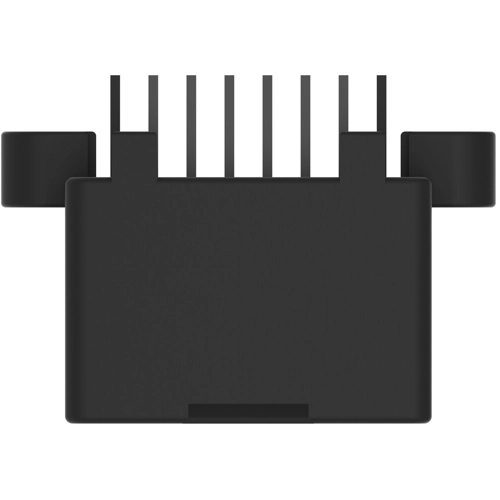

174975-1 TE Connectivity Automotive Power Connectors Image 3
174975-1 TE Connectivity Automotive Power Connectors Image 4
174975-1 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
7.1995 € *
Available: 0 pcs.
Available in 5 Days: 119 pcs.
Leadtime: 14 Weeks **
Total Price:
503.97 € *
*incl. VAT plus shipping costs
**Subject to prior sale
70 pcs.
7.1995 €

Hybrid header, 174975-1, TE Connectivity

Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 16, Number of positions: 16, PCB mount orientation: vertical, Number of rows: 2, Nominal voltage architecture: 12 V, Primary product color: black, Mating tab width: 1 mm, Mating tab thickness: 0.64 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention: without, Centerline (pitch): 2.5 mm, PCB thickness (recommended): 1.6 mm, Operating temperature (max): 100 °C, 105 °C, 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging quantity: 70

Technical specifications
Anschluss Lötanschluss
Anzahl der Reihen 2
Ausführung gerade
Farbe schwarz
Kontaktart Stecker
Kontaktoberfläche verzinnt
Nennspannung 12 V
Polzahl 16-polig
Rastermaß 2.5 mm
Verriegelung Ja
Logistics
Ursprungsland TH
Zolltarifnummer 85366930
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
