1801422-1 | TE Connectivity

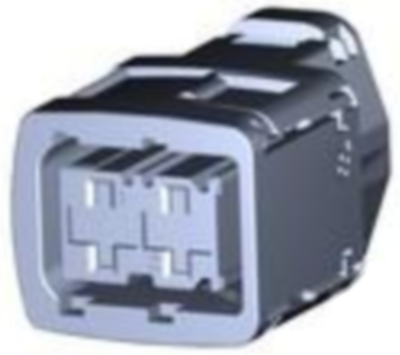

Socket, unequipped, 2 pole, straight, 1 row, black, 1801422-1
Order No.: 36P1866
EAN: 4099889897036
MPN:
1801422-1
Unit Price (€ / pc.)
3.7485 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.75 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7485 €
10 pcs.
3.4153 €
50 pcs.
3.0702 €
100 pcs.
2.7608 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket housing, 1801422-1, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 2, Number of rows: 1, Operating voltage: 16 VDC, Nominal voltage architecture: 12 V, Body material: PBT GF, Primary product color: black, Mating tab width: 0.64 mm, 1.5 mm, Mating alignment type: polarized, Centerline (pitch): 8.4 mm, Product height: 27.4 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: box & carton, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 1 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | socket | |
| Rated voltage | 16 V | |
| Pin number | 2 pole | |
| Grid | 8.4 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85389011 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
