1801610-1 | TE Connectivity

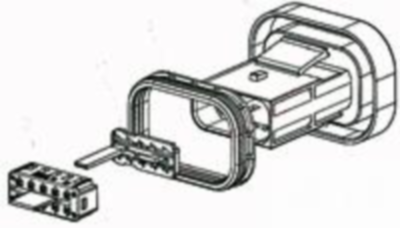

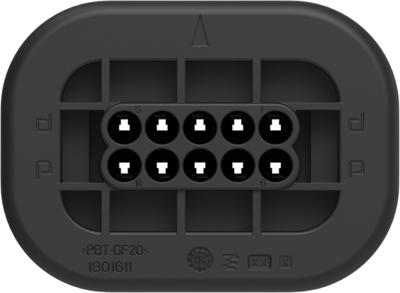

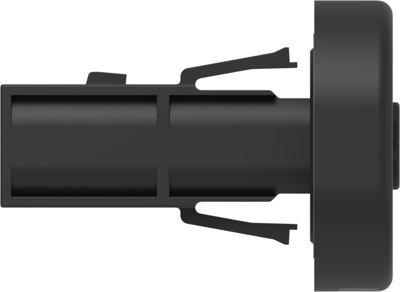

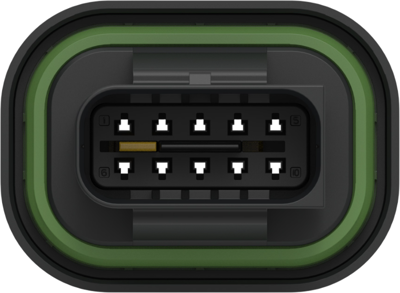

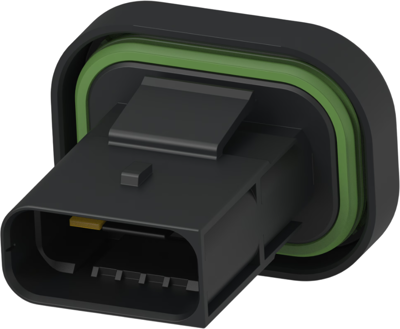

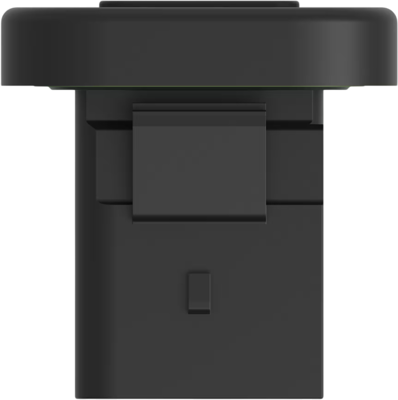

Plug, unequipped, 10 pole, straight, 2 rows, black, 1801610-1

Order No.: 35P9696
EAN: 4099889890969
MPN:
1801610-1
TE Connectivity
1801610-1 TE Connectivity Automotive Power Connectors
Image may differ
Unit Price (€ / pc.)
2.7965 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.80 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.7965 €

Plug housing, 1801610-1, TE Connectivity

Row-to-row spacing: 4.5 mm, Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Number of positions: 10, Number of rows: 2, Nominal voltage architecture: 12 V, Operating voltage: 16 VDC, Cable exit angle: 180°, Body material: PBT GF, Primary product color: black, Mating tab width: 1.2 mm, Mounting feature: without, Polarized, Centerline (pitch): 4.5 mm, Height: 34.9 mm, Length: 47.5 mm, Width: 47.7 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging method: box & carton, Packaging quantity: 500, Serviceable: yes, Connector position assurance capable: yes

Technical specifications
Number of rows 2
Version straight
Additional parts unequipped
Colour black
Contact type plug
Rated voltage 16 V
Pin number 10 pole
Grid 4.5 mm
Type of locking Yes
Logistics
Country of origin JP
Customs tariff number 85389011
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
