1827842-1 | TE Connectivity
Socket, unequipped, 40 pole, straight, 2 rows, natural, 1827842-1
Order No.: 35P8571
EAN: 4099889886351
MPN:
1827842-1
Unit Price (€ / pc.)
3.0107 € *
Available: 0 pcs.
Leadtime: On Request **

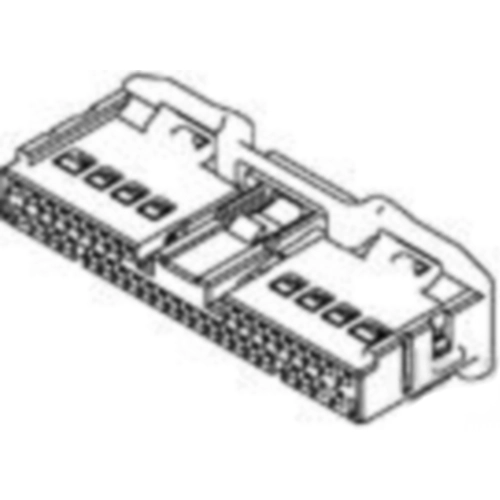

Socket housing, 1827842-1, TE Connectivity
Row-to-row spacing: 2.54 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Number of positions: 40, Number of rows: 2, Nominal voltage architecture: 12 V, Operating voltage: 12 VDC, Cable exit angle: 180°, Body material: PBT, Primary product color: natural, Mating tab width: 0.5 mm, Mounting feature: without, Polarized, Centerline (pitch): 1.5-Height: 12.5 mm, Length: 15.8 mm, Width: 42.6 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -30-85 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging method: bag/box, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 2 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | natural | |
| Contact type | socket | |
| Rated voltage | 12 V | |
| Pin number | 40 pole | |
| Grid | 1.5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
