185534-3 | TE Connectivity

Plug, 26 pole, angled, 2 rows, yellow, 185534-3

Order No.: 36P1173
EAN: 4099889893779
MPN:
185534-3

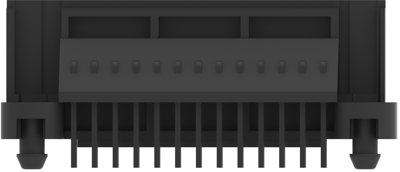

185534-3 TE Connectivity Automotive Power Connectors Image 1

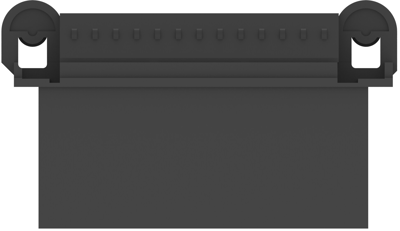

185534-3 TE Connectivity Automotive Power Connectors Image 2

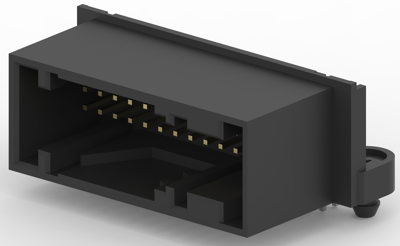

185534-3 TE Connectivity Automotive Power Connectors Image 3

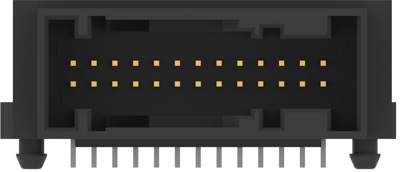

185534-3 TE Connectivity Automotive Power Connectors Image 4

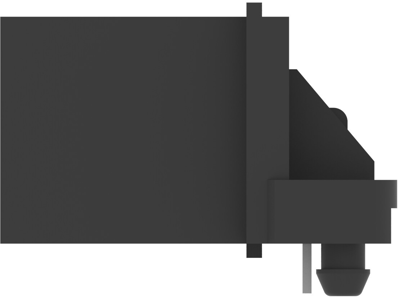

185534-3 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
3.1892 € *
Available: 0 pcs.
Leadtime: 26 Weeks **
Total Price:
2,232.44 € *
*incl. VAT plus shipping costs
**Subject to prior sale
700 pcs.
3.1892 €

Hybrid header, 185534-3, TE Connectivity

Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 26, Number of positions: 26, PCB mount orientation: horizontal, Number of rows: 2, Nominal voltage architecture: 12 V, Primary product color: yellow, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: boardlock, Centerline (pitch): 2.54 mm, PCB thickness (recommended): 1.6 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, -40-85 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging quantity: 700, Interface number: 208-15550

Technical specifications
Anschluss Lötanschluss
Anzahl der Reihen 2
Ausführung abgewinkelt
Farbe gelb
Kontaktart Stecker
Kontaktoberfläche verzinnt
Nennspannung 12 V
Polzahl 26-polig
Rastermaß 2.54 mm
Verriegelung Ja
Logistics
Ursprungsland TW
Zolltarifnummer 85366910
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
