185740-1 | TE Connectivity

Plug, 12 pole, angled, 2 rows, black, 185740-1

Order No.: 36P1156
EAN: 4099889893649
MPN:
185740-1

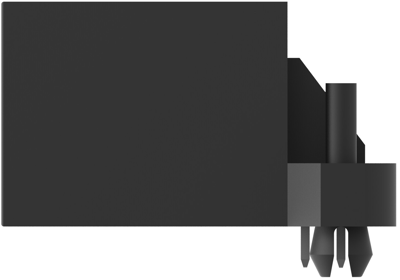

185740-1 TE Connectivity Automotive Power Connectors Image 1

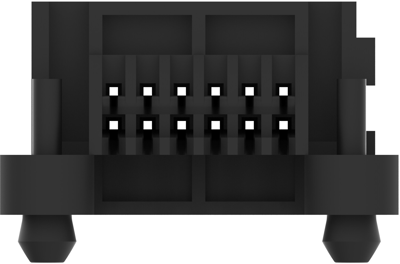

185740-1 TE Connectivity Automotive Power Connectors Image 2

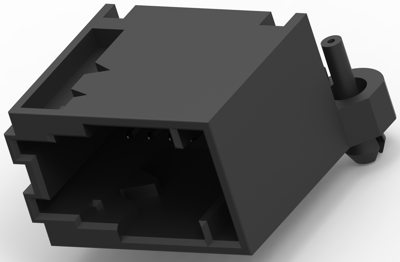

185740-1 TE Connectivity Automotive Power Connectors Image 3

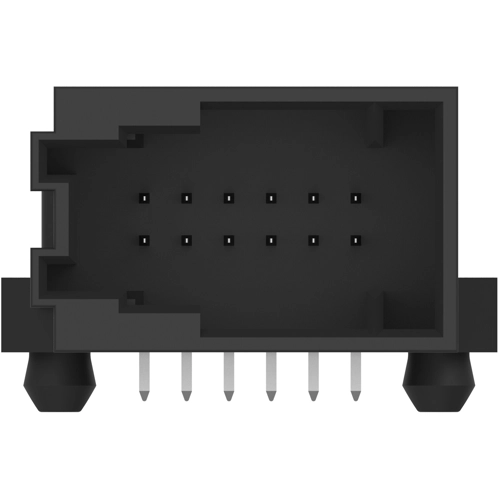

185740-1 TE Connectivity Automotive Power Connectors Image 4
Image may differ
Unit Price (€ / pc.)
0.8449 € *
Available: 0 pcs.
Leadtime: 27 Weeks **
Total Price:
1,165.96 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1380 pcs.
0.8449 €

Hybrid header, 185740-1, TE Connectivity

Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 12, Number of positions: 12, PCB mount orientation: horizontal, Number of rows: 2, Nominal voltage architecture: 12 V, Primary product color: black, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: boardlock, Centerline (pitch): 2.54 mm, PCB thickness (recommended): 1.6 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, -40-85 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging quantity: 1472, Interface number: 208-15544

Technical specifications
Anschluss Lötanschluss
Anzahl der Reihen 2
Ausführung abgewinkelt
Farbe schwarz
Kontaktart Stecker
Kontaktoberfläche verzinnt
Nennspannung 12 V
Polzahl 12-polig
Rastermaß 2.54 mm
Verriegelung Ja
Logistics
Ursprungsland GB
Zolltarifnummer 85366910
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
