1981471-1 | TE Connectivity
Socket, unequipped, 8 pole, straight, 2 rows, gray, 1981471-1
Order No.: 35P8612
EAN: 4099889886641
MPN:
1981471-1
Unit Price (€ / pc.)
1.1305 € *
Available: 0 pcs.
Available in 5 Days: 61,200 pcs.
Leadtime: 30 Weeks **

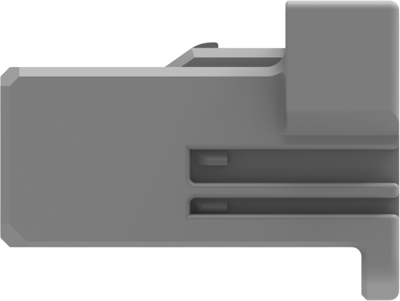

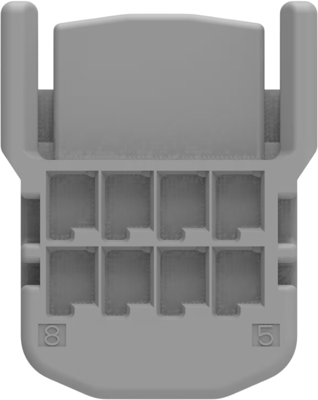

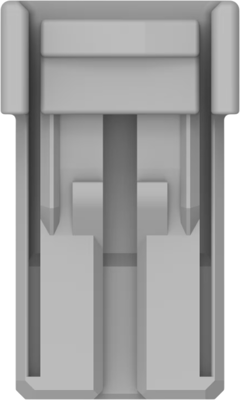

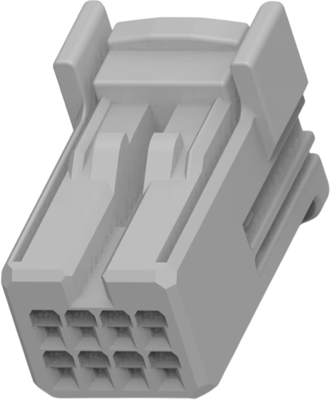

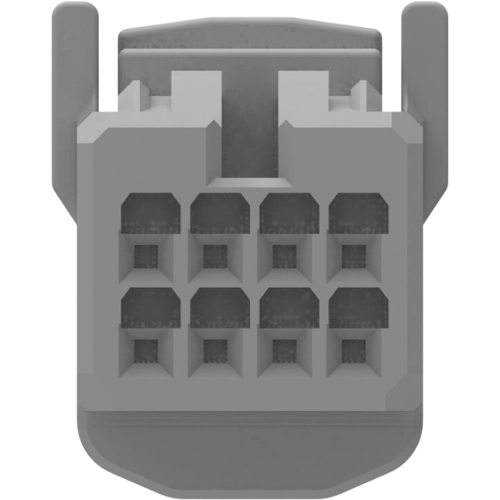

Socket housing, 1981471-1, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 8, Number of rows: 2, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: gray, Mating tab width: 0.64 mm, Mating alignment type: polarized, Centerline (pitch): 2.2 mm, Row-to-row spacing: 2.54 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Number of rows | 2 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | gray | |
| Contact type | socket | |
| Rated voltage | 12 V | |
| Pin number | 8 pole | |
| Grid | 2.2 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
