2-1924067-0 | TE Connectivity

Socket, 2 pole, straight, 1 row, black, 2-1924067-0

Order No.: 71P5443
EAN: 4099889449884
MPN:
2-1924067-0
Series: MCON

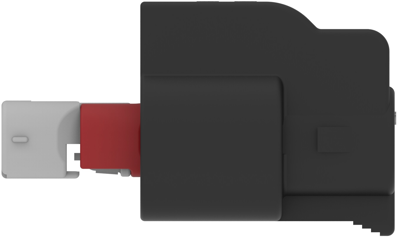

2-1924067-0 TE Connectivity Automotive Power Connectors Image 1

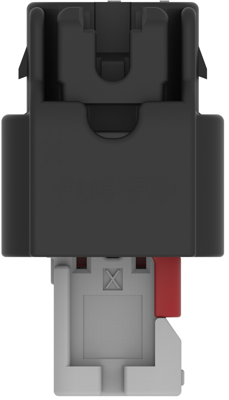

2-1924067-0 TE Connectivity Automotive Power Connectors Image 2

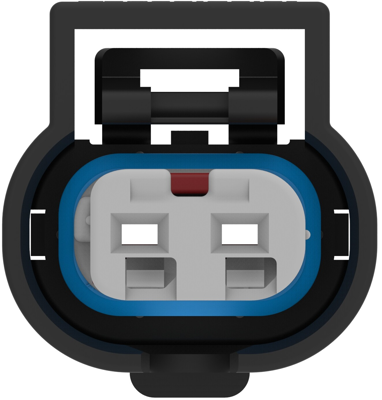

2-1924067-0 TE Connectivity Automotive Power Connectors Image 3

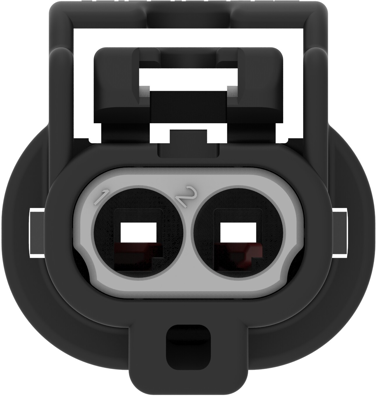

2-1924067-0 TE Connectivity Automotive Power Connectors Image 4

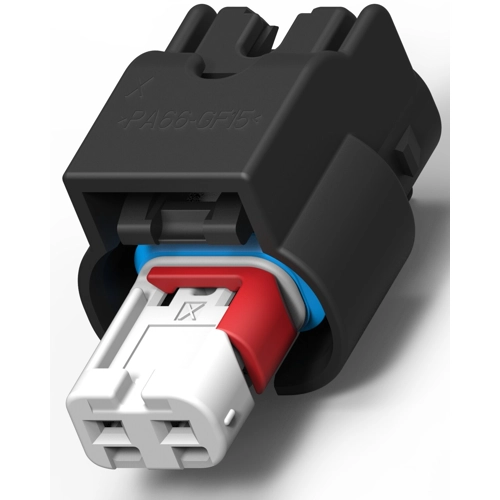

2-1924067-0 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.1900 € *
Available: 0 pcs.
Available in 5 Days: 9,845 pcs.
Leadtime: 15 Weeks **
Total Price:
238.00 € *
Price list
Quantity
Price per unit*
200 pcs.
1.1900 €
400 pcs.
1.1662 €
*incl. VAT plus shipping costs
**Subject to prior sale

Receptacle housing, 2-1924067-0, TE Connectivity

The 2-1924067-0 is a connector system that offers high reliability for use in the automotive industry with capability for waterproofing and resistance to conditions of extreme vibration. This product is designed for electronic and electrical applications in motor vehicles, where vibrations and mechanical stress, in the long term, can affect the quality on the contact system.

Features

  • High vibration level supported
  • Integrated secondary locking device delivered in pre-locked position
  • Polarization, several keyings
  • Locking mechanism for smaller connectors/ mating aid for higher numbers of ways
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 1
Ausführung gerade
Farbe schwarz
Kontaktart Buchse
Polzahl 2-polig
Rastermaß 4 mm
Verriegelung Ja
Logistics
Ursprungsland MX
Zolltarifnummer 85442000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
