2-6447232-3 | TE Connectivity

Plug, 34 pole, straight, 4 rows, black, 2-6447232-3

Order No.: 36P4332
EAN: 4099889906332
MPN:
2-6447232-3
Series: SUPERSEAL 1.0
TE Connectivity

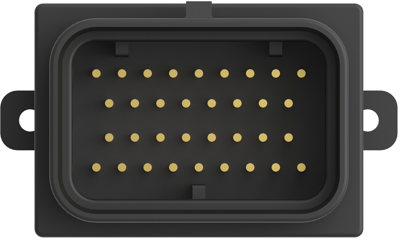

2-6447232-3 TE Connectivity Automotive Power Connectors Image 1

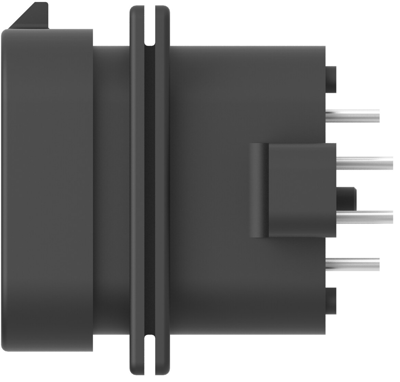

2-6447232-3 TE Connectivity Automotive Power Connectors Image 2

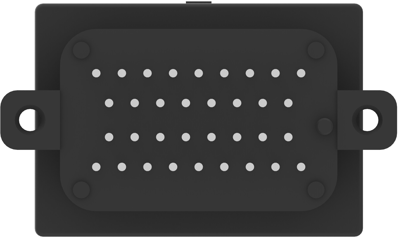

2-6447232-3 TE Connectivity Automotive Power Connectors Image 3

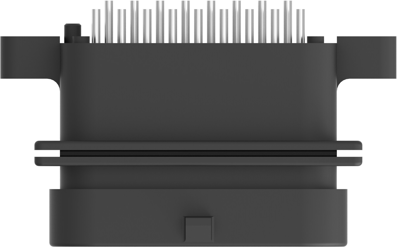

2-6447232-3 TE Connectivity Automotive Power Connectors Image 4
2-6447232-3 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
29.4763 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
29.48 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
29.4763 €

PCB mount header, 2-6447232-3, TE Connectivity

PCB mount header, Vertical, Wire-to-device, Wire-to-board, 34 Position, 3.5 mm-3 mm Centerline, Fully shrouded, SUPERSEAL 1.0mm

Technical specifications
Anschluss Lötanschluss
Anzahl der Reihen 4
Ausführung gerade
Farbe schwarz
Kontaktart Stecker
Kontaktoberfläche vergoldet
Nennspannung 250 V
Polzahl 34-polig
Rastermaß 3 mm
Verriegelung Ja
Logistics
Ursprungsland US
Zolltarifnummer 85366910
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
