2098978-1 | TE Connectivity
Plug, 52 pole, straight, 3 rows, black, 2098978-1
Order No.: 35P8819
EAN: 4099889887969
MPN:
2098978-1
Unit Price (€ / pc.)
15.5652 € *
Available: 0 pcs.
Leadtime: On Request **

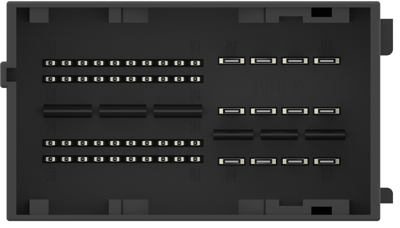

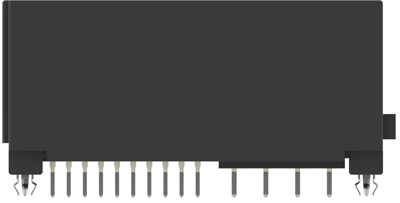

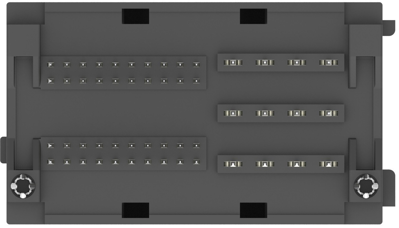

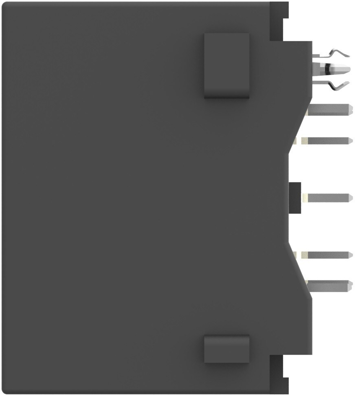

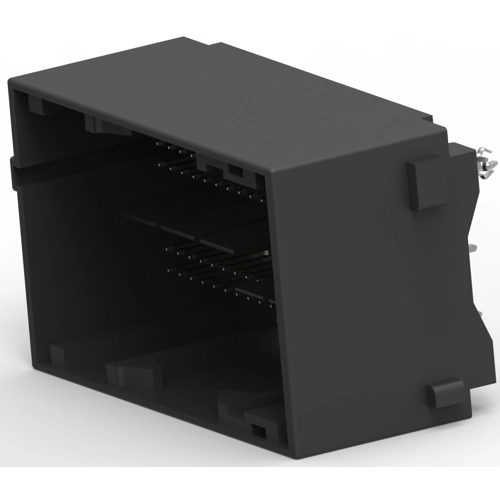

PCB mount header, 2098978-1, TE Connectivity
Hybrid header: yes, Sealable: no, Connector & contact terminates to: printed circuit board, Number of sections: 1, Number of positions: 52, PCB mount orientation: vertical, Number of rows: 3, Primary product color: black, Mating tab width: 0.64 mm, 2.8 mm, Mating tab thickness: 0.64-0.8 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: boardlock, Centerline (pitch): 2.54 mm, Product length: 59 mm, Shielded: no, Circuit application: signal, Packaging quantity: 40
Technical specifications
| Connection | solder connection | |
| Number of rows | 3 | |
| Version | straight | |
| Colour | black | |
| Contact type | plug | |
| contact surface | tin-plated | |
| Pin number | 52 pole | |
| Grid | 2.54 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
